Alu-Steel
Inspired by traditional designs, the new Alu-Steel system combines the outstanding performance of aluminium with more classic aesthetics characteristic of steel. With a visible section of only 72.5 mm, Alu-Steel is an ideal solution for both refurbishment and new-build projects, offering straight and chamfered versions.
Aluminium hinged system with steel aesthetics
Alu-Steel combines the technical performance of aluminium with a classic appearance inspired by steel joinery. Its modern and classic versions allow the solution to be adapted to refurbishment, residential and new-build projects where profile design plays a leading role.
- Thermal transmittance
- Uw ≥ 0.83 W/m²K
- Acoustic insulation
- Rw up to 45 dB
- Air permeability
- Class 4
- Water tightness
- Class E1200
- Wind resistance
- Class C5
System technical information
Main data
- Sections
- Modern frame 75 mm · Classic frame 100 mm · Sash 83 mm
- Polyamide strip length
- 32 - 39 mm
- Profile thickness
- Window 1.5 mm
- Glazing
- Max. 54 mm · Min. 20 mm
- Max. sash dimensions
- Width 1500 mm · Height 2600 mm
- Max. sash weight
- 160 kg
- Note
- Check maximum weight and dimensions according to typology
Options

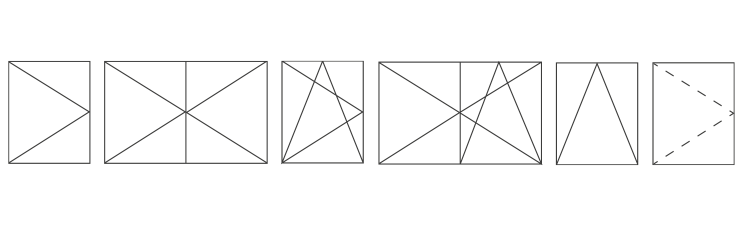

Opening options
System gallery

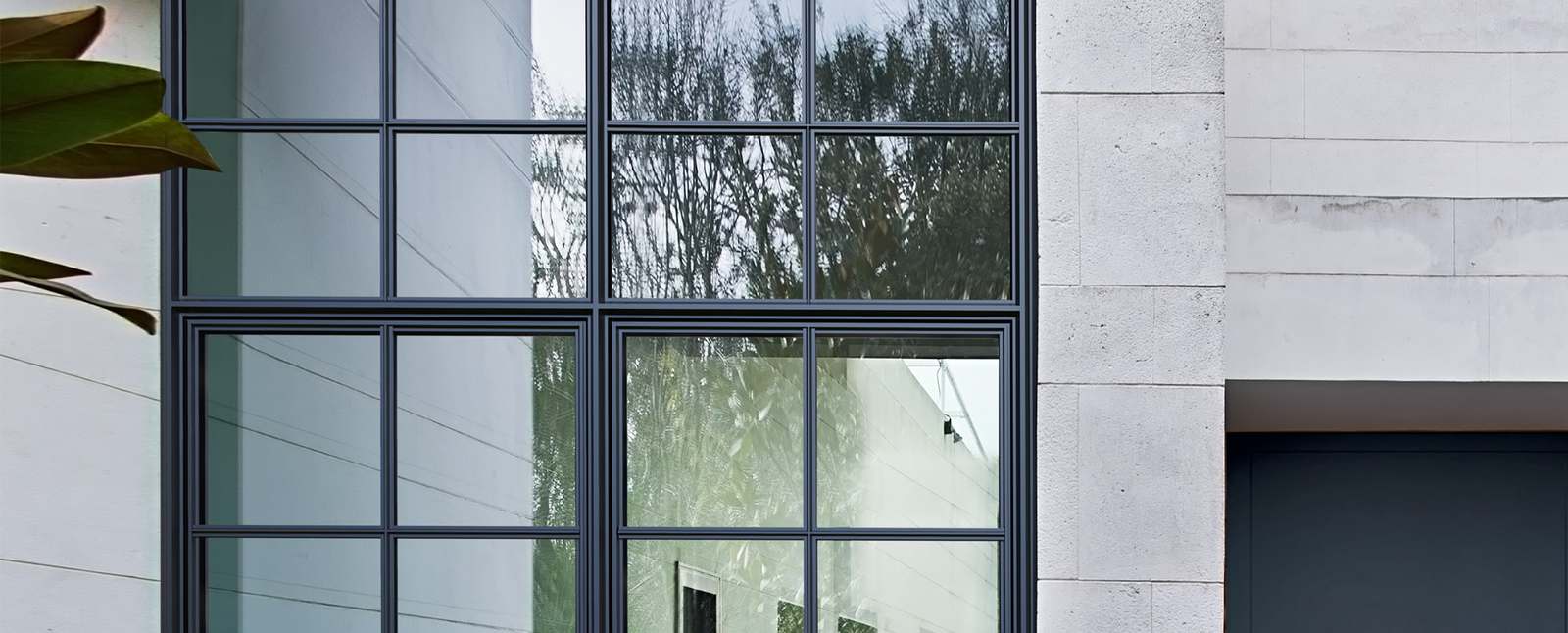

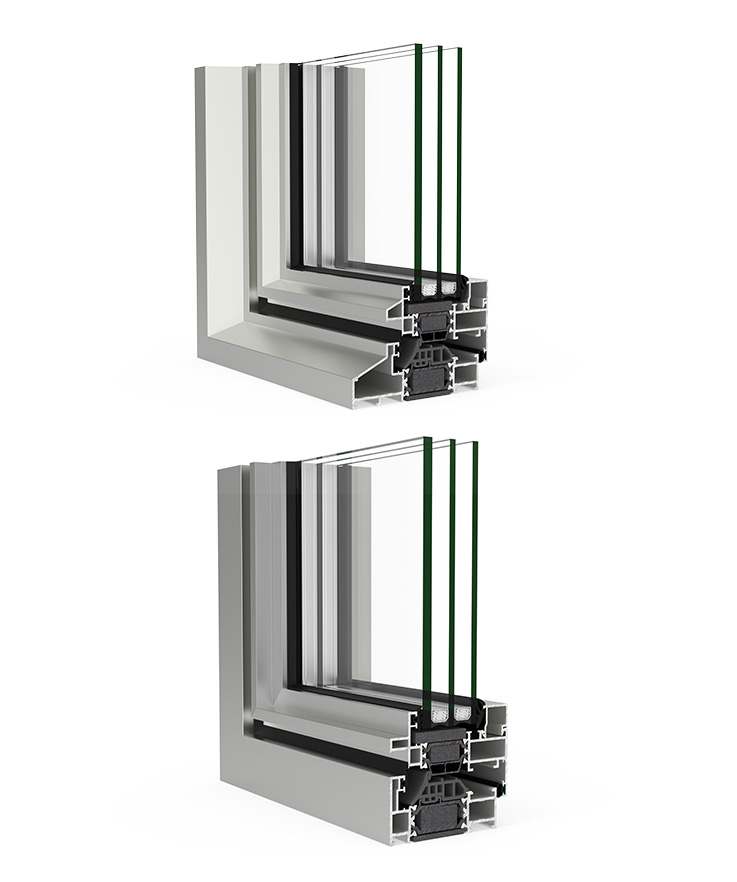

Images prepared to show the Alu-Steel aesthetics, the classic and modern versions, its technical sections and its integration into residential projects.
Compare this system with what you need to improve
Before choosing a window, it helps to relate the system to the real use of the home: thermal insulation, outside noise, air leakage, watertightness, orientation and opening type.
Connect this system with your project
Review selection criteria, related solutions and real projects before comparing performance and requesting a quote.
Would you like to assess Alu-Steel for your home?
Request a quote and we will help you analyse whether this system meets your needs for classic design, insulation, comfort and performance.
