Hinged windows and doors

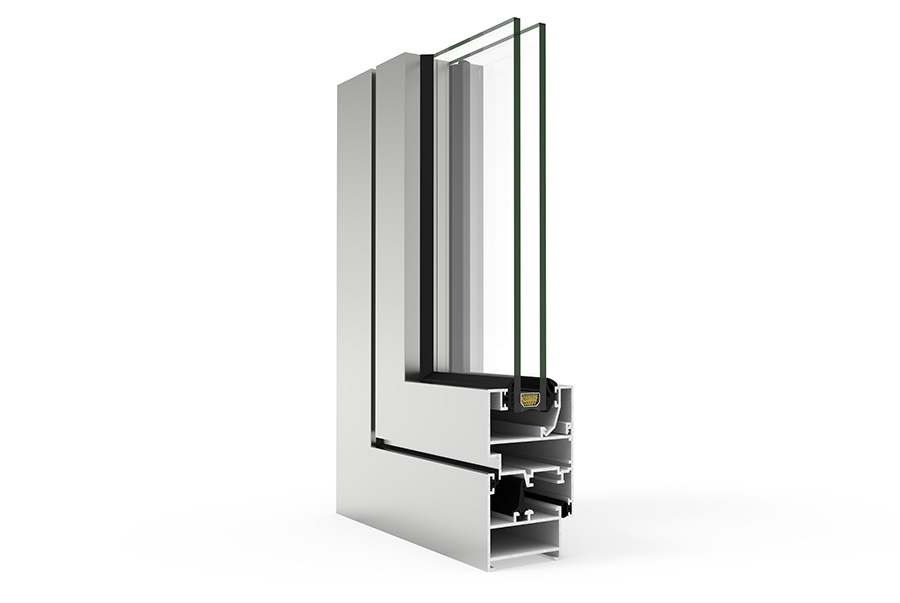

COR 2000
European-groove hinged system with a glazing capacity of 31 mm. Its profile thickness, 1.5 mm in the window version and 1.7 mm in the door version, gives it exceptional rigidity and durability.
European-groove hinged system
COR 2000 offers a robust and versatile solution for aluminium windows and doors, with a good balance between rigidity, durability, watertightness performance and a variety of openings.
Thermal transmittanceUw ≥ 1.8 W/m²K
Acoustic insulationRw up to 39 dB
Air permeabilityClass 4
Water tightnessClass 9A
Wind resistanceClass C5
AEV reference test 1.20 x 1.18 m / 2 sashes.
System technical information
Main data

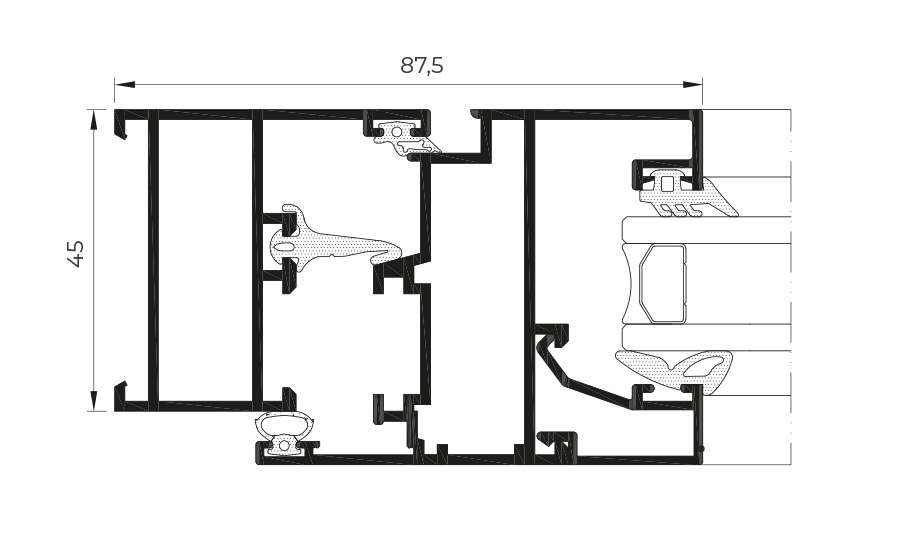

SectionsFrame 45 mm · Sash 53 mm
Profile thicknessWindow 1.5 mm · Door 1.7 mm
GlazingMax. 31 mm · Min. 3 mm
Max. sash dimensionsWidth 1500 mm · Height 2400 mm
Max. sash weight120 kg
NoteCheck maximum weight and dimensions according to typology
Options
Security hardware
Concealed hardwareSash: straight or curved · Glazing bead: straight or curved

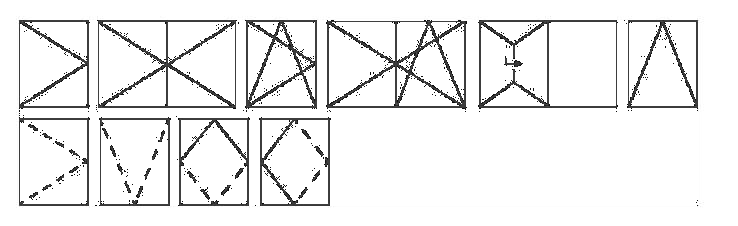

Opening options
Inward opening: side-hung, tilt & turn, parallel sliding and bottom-hung. Outward opening: side-hung, projected sliding and vertical or horizontal pivot.
System gallery

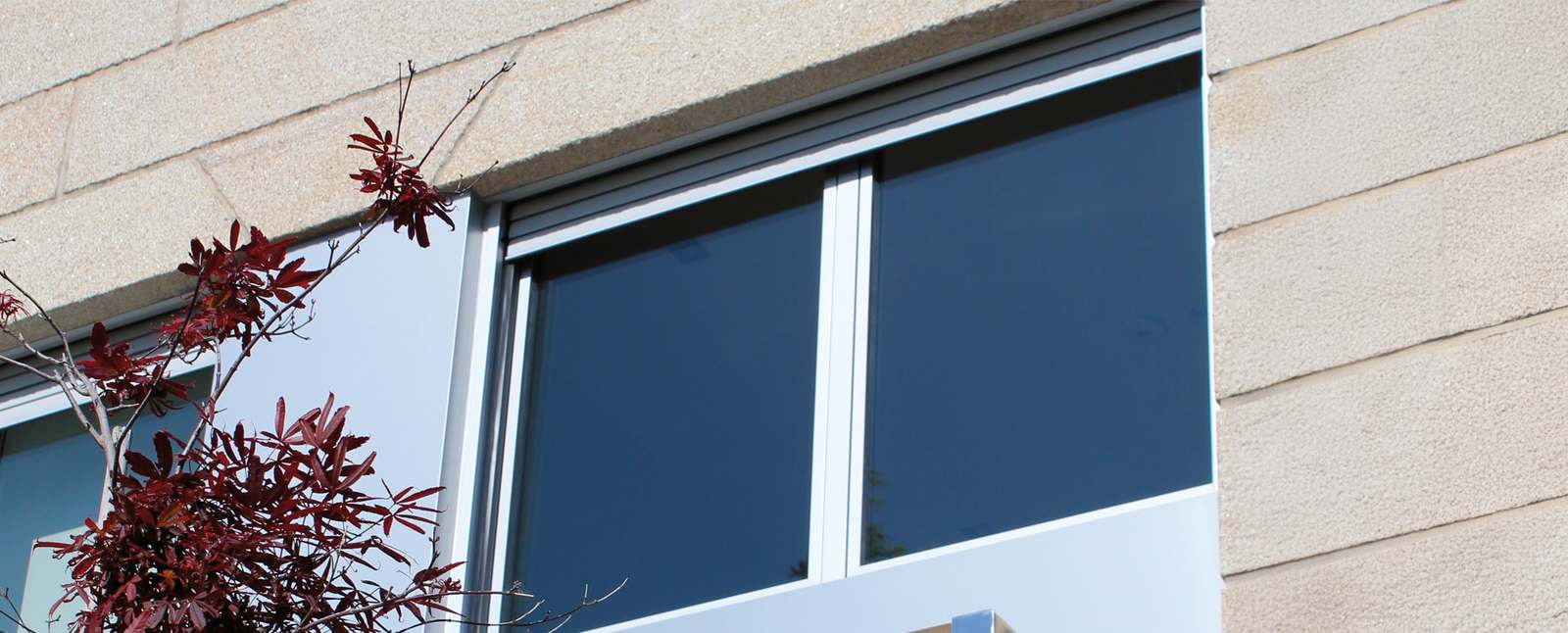

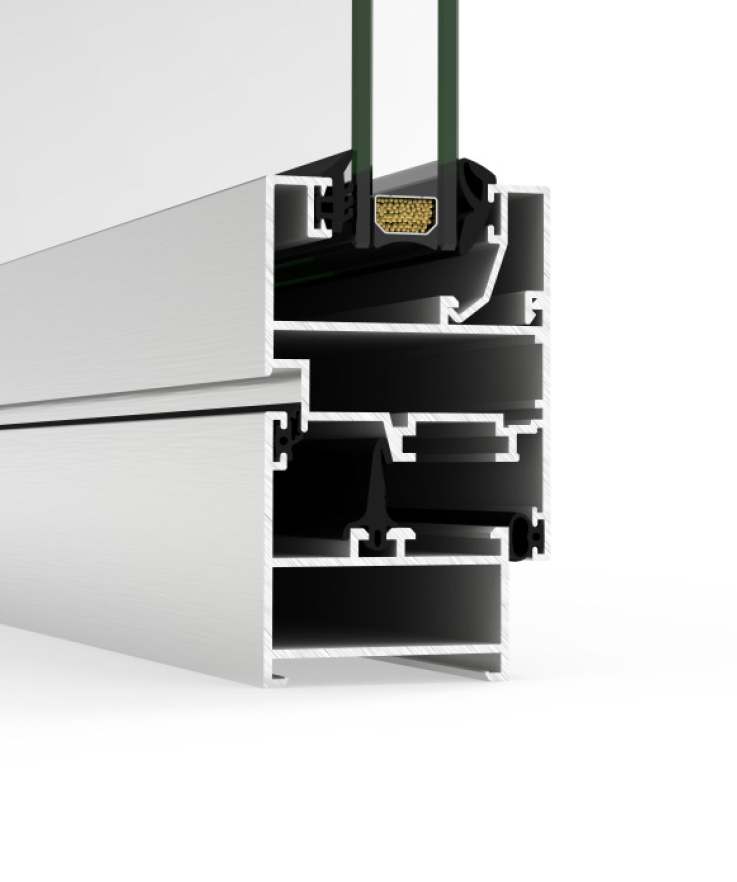

Images prepared to show COR 2000 integration on the façade, its section details, opening options and residential applications.
Would you like to assess COR 2000 for your home?
Request a quote and we will help you analyse whether this system meets your needs for insulation, comfort, design and performance.
