Hinged windows and doors

COR 70 Industrial

This 70 mm deep hinged system delivers strong thermal and acoustic performance together with very simple fabrication. It has therefore become one of the most popular series for aluminium windows, doors and balcony doors. It is available in two versions: a more traditional visible sash and a semi-visible sash that increases the glazed surface.

Features System technical information System gallery

Features

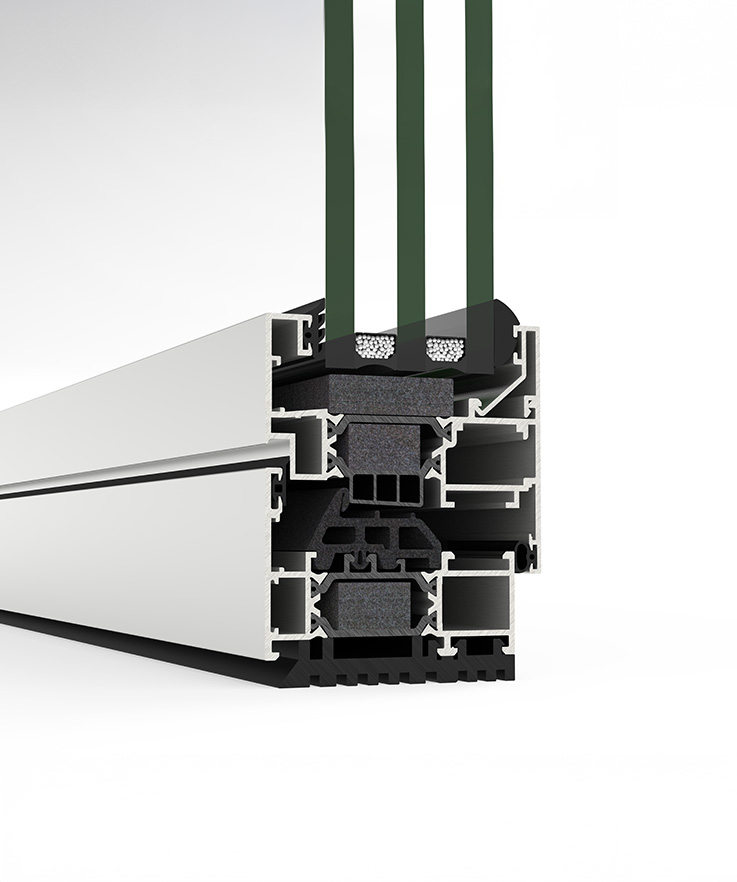

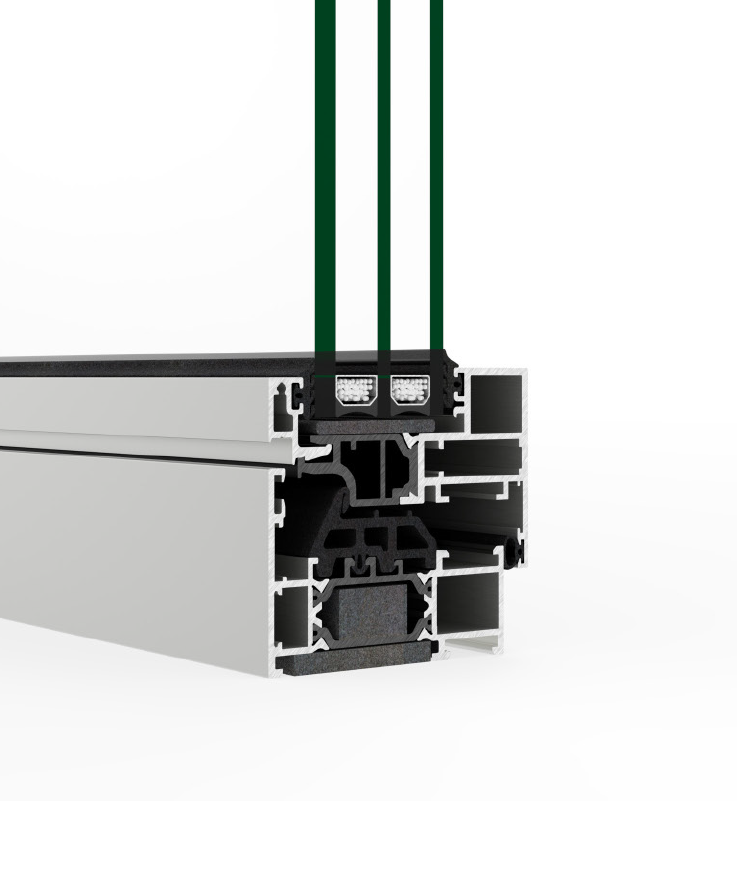

70 mm aluminium hinged system with visible and semi-visible sash

COR 70 Industrial combines thermal insulation, acoustic insulation, security and strength in a versatile aluminium solution for homes, refurbishment projects and demanding use conditions.

Thermal transmittance: Uw ≥ 0.76 W/m²K
Acoustic insulation: Rw up to 44 dB
Air permeability: Class 4
Water tightness: Class E1800
Wind resistance: Class C5
AAMA standard test: Class AW-PG60 *
Burglar resistance: Grade RC2 (WK2)
PAS 24 security test: Suitable

AEV reference test 1.23 x 1.48 m / 2 sashes. Security test: reference test 1.100 x 2.400 m / 1 sash. Burglar-resistance test 1.47 x 2.52 m / 1 sash with EVO SECURITY hardware. DTA certification from CSTB laboratory. *AAMA standard test: Class AW-PG60 1502 x 2502 - FW / fixed reference test 1.50 x 2.50 m.

System technical information

Main data

Sections: Frame 70 mm · Sash 78 mm
Polyamide strip length: 32 / 35 mm · 35 mm (Semi-visible)
Profile thickness: Window 1.5 mm · Door 1.7 mm · Window 1.9 mm (Semi-visible)
Glazing: Max. 63 mm · Min. 6 mm · Max. 40 mm · Min. 26 mm (Semi-visible)
Max. sash dimensions: Width 1500 mm · Height 2600 mm · Semi-visible: width 1300 mm · height 2400 mm · Standard solution: width 1200 mm · height 3000 mm · HD solution for side-hung opening
Max. sash weight: 160 kg
Note: Check maximum weight and dimensions according to typology

Options

Security hardware

Concealed hardware

Concealed drainage

Accessibility

Integrated blind

Sash: straight or curved · Glazing bead: straight or curved

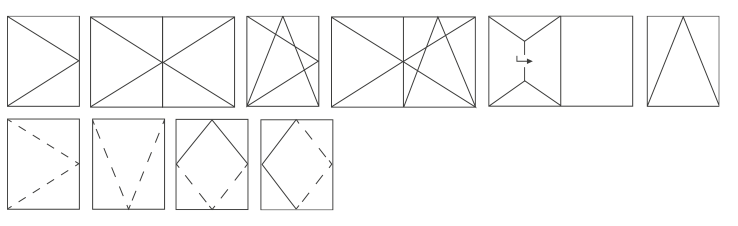

Opening options

Inward opening: side-hung, tilt & turn, parallel sliding and bottom-hung. Outward opening: side-hung, projecting sliding and horizontal or vertical pivot.

System gallery

Images prepared to show the system, its visible and semi-visible sash versions, its technical details and its integration into aluminium projects.
