COR 75 Performance

New complete range of hinged systems with exclusive special hardware. The visible-sash version of the new COR 75 Performance meets the strictest insulation requirements thanks to its low-density EPDM gaskets, 40 mm polyamide strips and 68 mm glazing capacity.

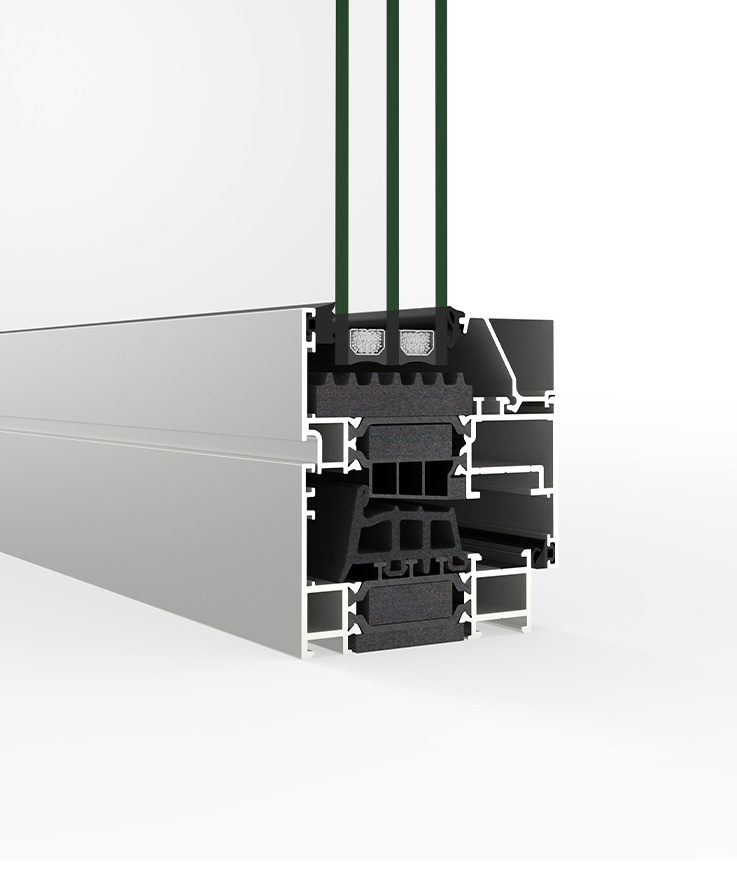

Visible sash

High performance for efficient aluminium windows

COR 75 Performance is an aluminium system for hinged windows and doors aimed at residential projects seeking energy efficiency, watertightness, security and refined aesthetics. Its glazing capacity makes it possible to incorporate high-performance glass to improve indoor comfort.

Air permeabilityClass 4
Acoustic insulationRw up to 45 dB
Water tightnessClass E2100
Wind resistanceClass CE2600
Thermal transmittanceUw ≥ 0.71 W/m²K
AEV reference test 1.23 x 1.48 m / 2 sashes.

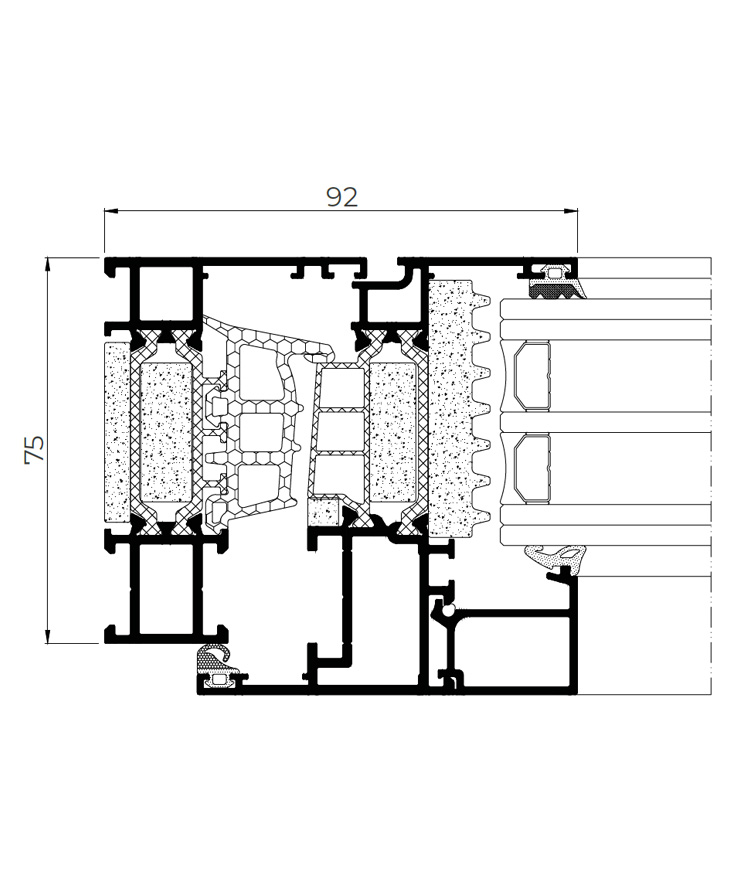

Technical features

System technical information

Main data

SectionsFrame 75 mm · Sash 85 mm
Polyamide strip length40 mm
Profile thicknessWindow 1.6 mm · Door 1.8 mm
GlazingUp to 68 mm
Max. sash dimensionsWidth 1700 mm · Height 3000 mm
Max. sash weight200 kg

Options

Security hardware Security hardware
Concealed hardware Concealed hardware
Concealed drainage Concealed drainage
Accessibility Accessibility
COR 75 Performance opening options
Opening options
Inward opening: side-hung, tilt & turn and bottom-hung.
Gallery

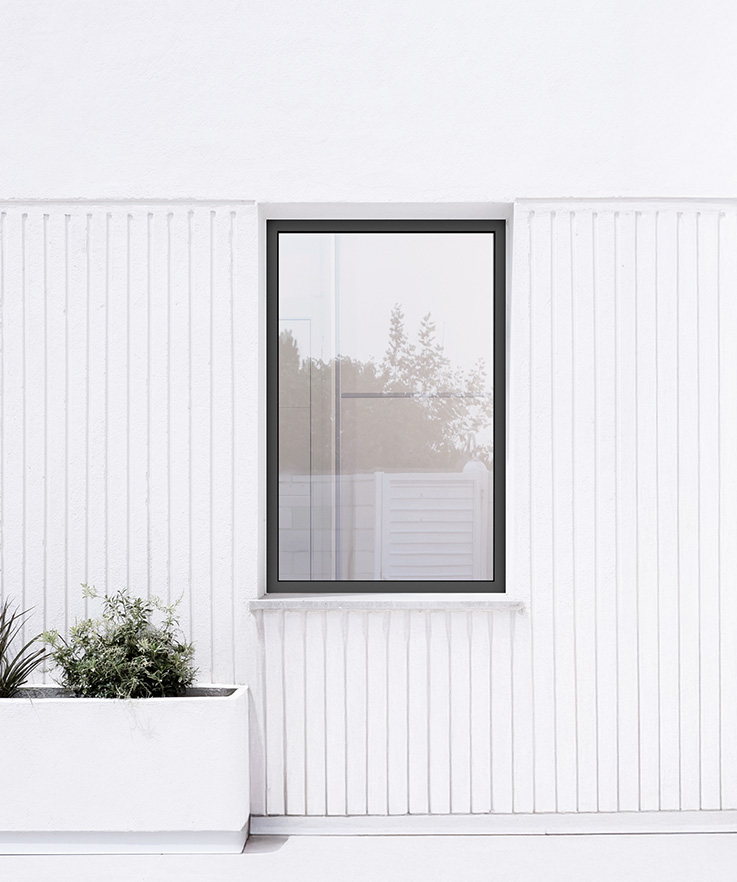

Applications and withstruction details

Supporting images to present the system, its sections and its integration into residential projects.

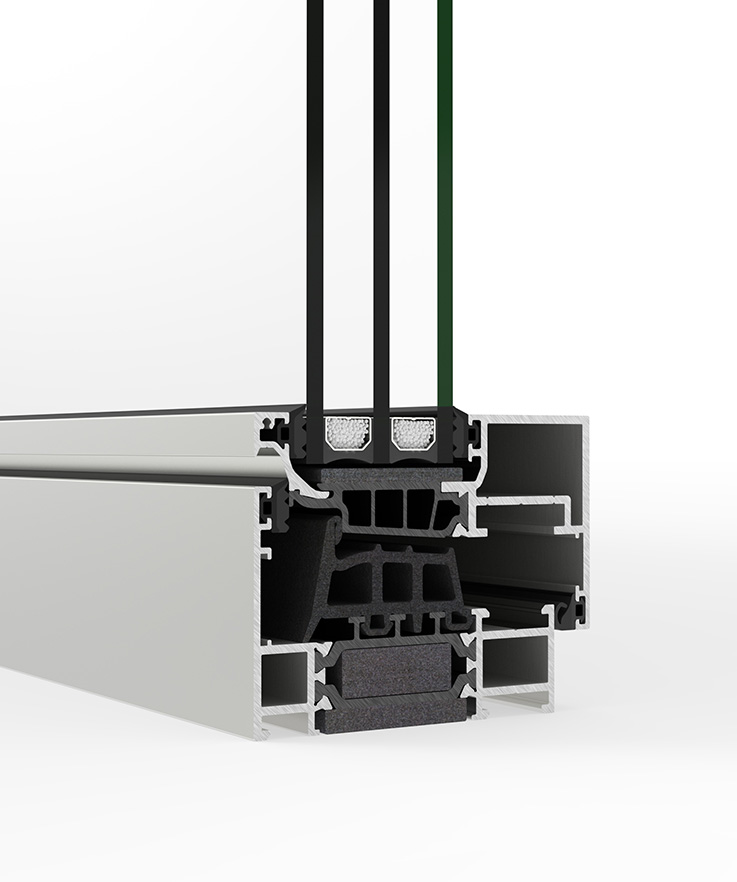

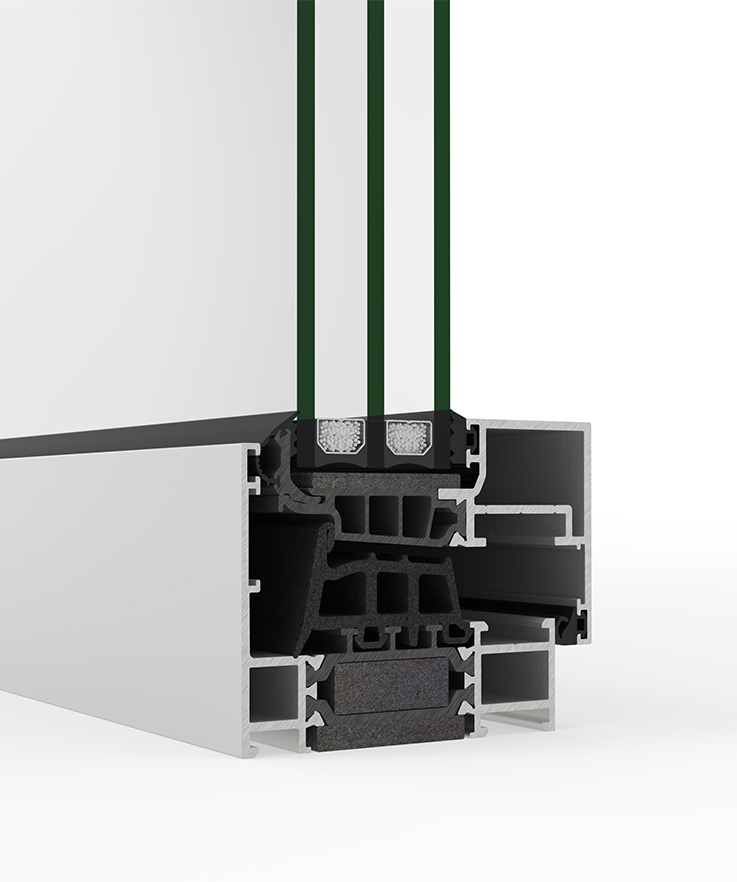

Concealed and semi-visible sash

More natural light and minimalist aesthetics

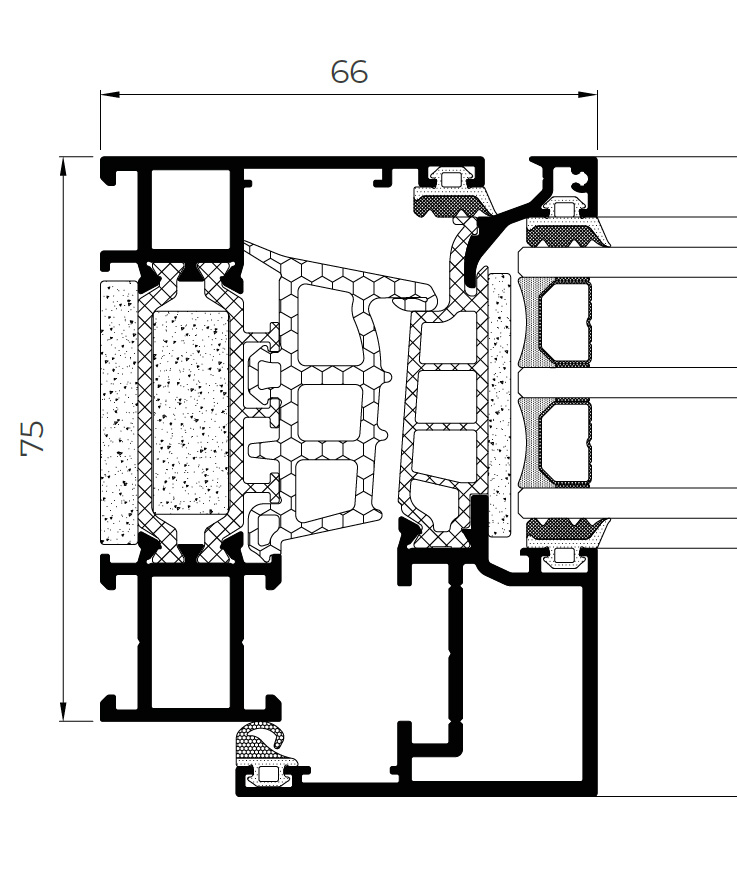

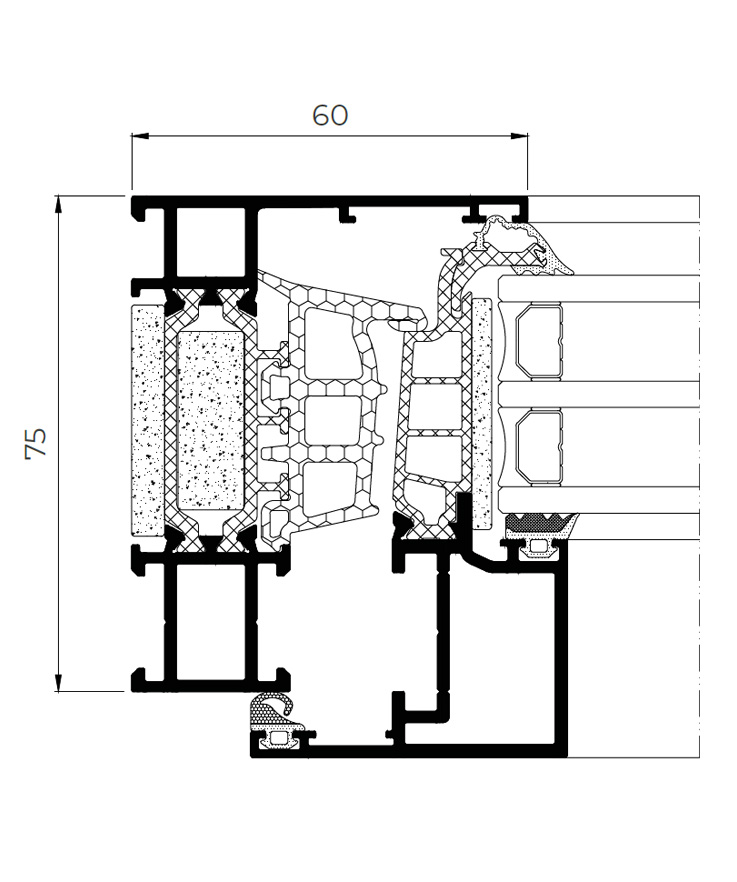

The series includes a withcealed-sash version with a perimeter visible section of just 60 mm, which facilitates the entry of natural light by maximising the glazed surface. Its 44 mm polyamide strips and glazing of up to 63 mm make it possible to offer a thermal transmittance value Uw from 0.71 W/m²K. The semi-visible sash solution increases the aesthetic possibilities of the range while maintaining its minimalist line thanks to its 66 mm perimeter visible section.

Thermal transmittanceUw ≥ 0.71 W/m²K
Acoustic insulationRw up to 45 dB
Air permeabilityClass 4
Water tightnessClass E1650
Wind resistanceClass CE2600
AEV reference test 1.23 x 1.48 m / 2 sashes.
Concealed and semi-visible sash

Technical data and finishes of the variant

Main data

SectionsFrame 75 mm · Sash 77 mm
Polyamide strip length44 mm
Profile thicknessWindow 1.8 mm
GlazingUp to 44 mm
Max. sash dimensionsWidth 1300 mm · Height 3000 mm
Max. sash weight150 kg

Opening options

COR 75 Performance withcealed-sash openings
Inward opening: side-hung, tilt & turn and bottom-hung.
