Hinged windows and doors

COR 80 Industrial Passivhaus

Certified for the warm-temperate category, this system delivers exceptional thermal insulation thanks to special foams in the frame and sash. With a Uw value from only 0.66 W/m²K, it is an ideal solution for low-energy buildings.

Performance Technical system information System gallery

Performance

Passivhaus aluminium window for high-efficiency projects | Cortizo aluminium and PVC windows for homes

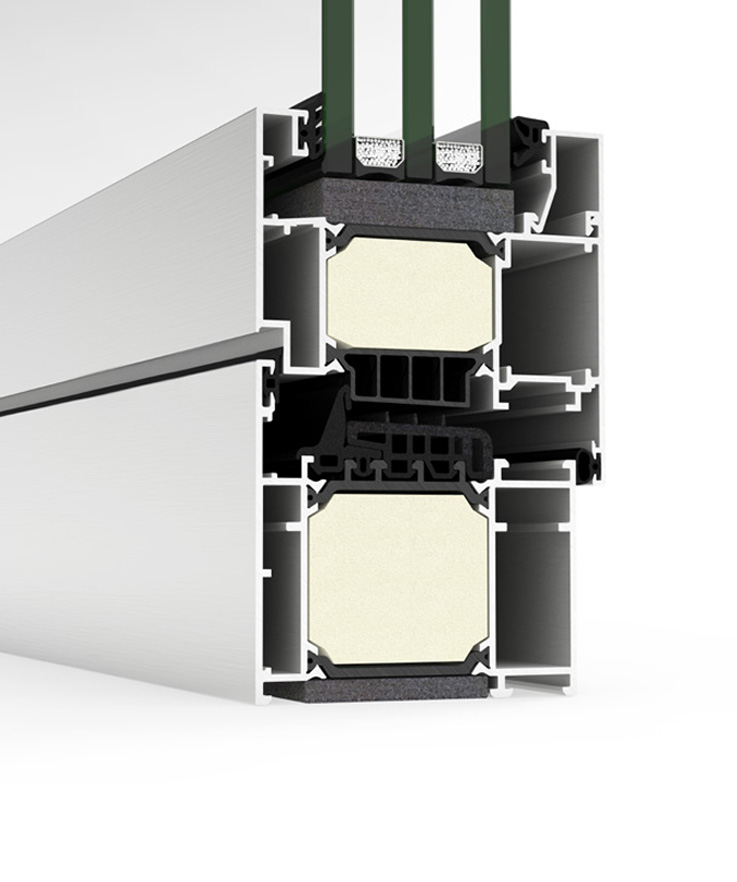

COR 80 Industrial Passivhaus is a hinged aluminium solution for homes and buildings that need to reduce energy demand while maintaining strength, security and design.

Thermal transmittanceUw ≥ 0.66 W/m²K

Acoustic insulationRw up to 46 dB

Air permeabilityClass 4

Water tightnessClass E1950

Wind resistanceClass C5

Reference AEV test 1.23 x 1.48 m / 2 sashes.

Technical system information

Main data

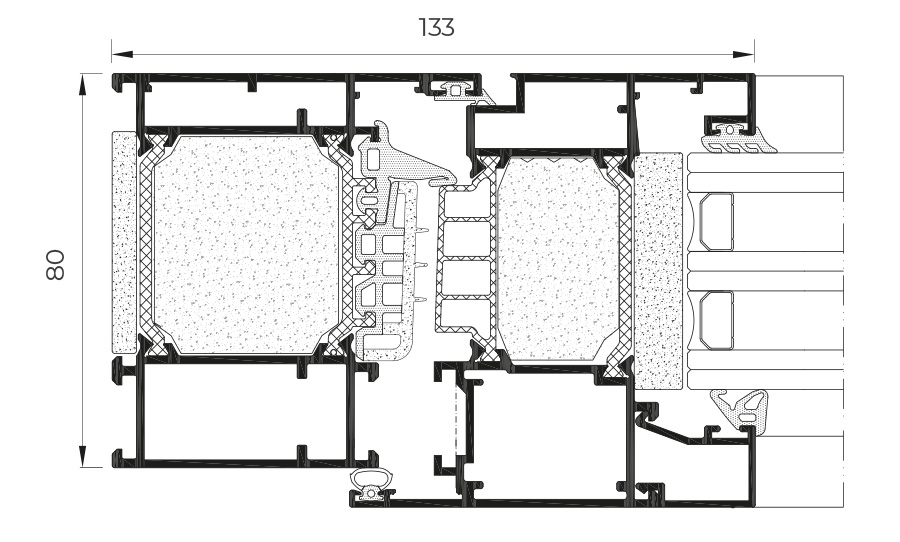

SectionsFrame 80 mm · Sash 88 mm

Profile thickness1.6 mm

Thermal break length45 mm

GlazingMax. 65 mm · Min. 16 mm

Max. sash dimensionsWidth 1500 mm · Height 2600 mm

Max. sash weight160 kg

Options

Security hardware

Concealed hardware

Sash: straight or curved · Glazing bead: straight or curved

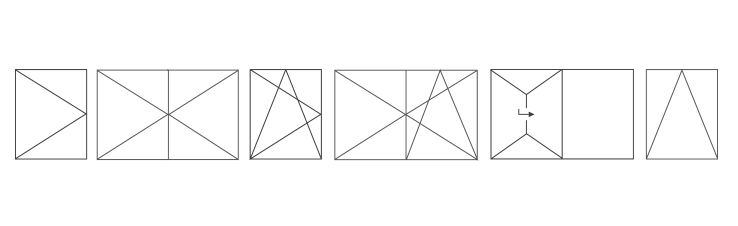

Opening possibilities

Inward opening: side-hung, tilt-and-turn, parallel sliding and bottom-hung.

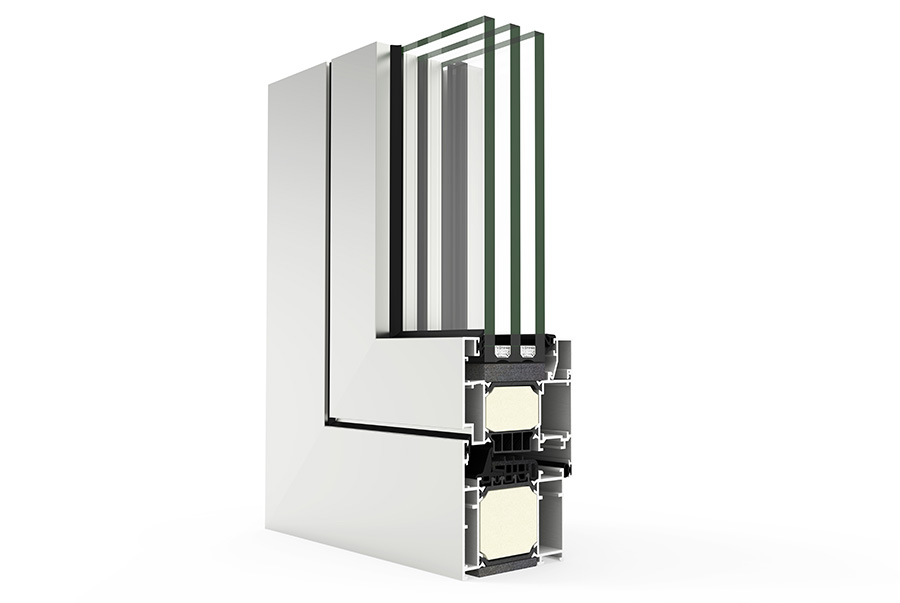

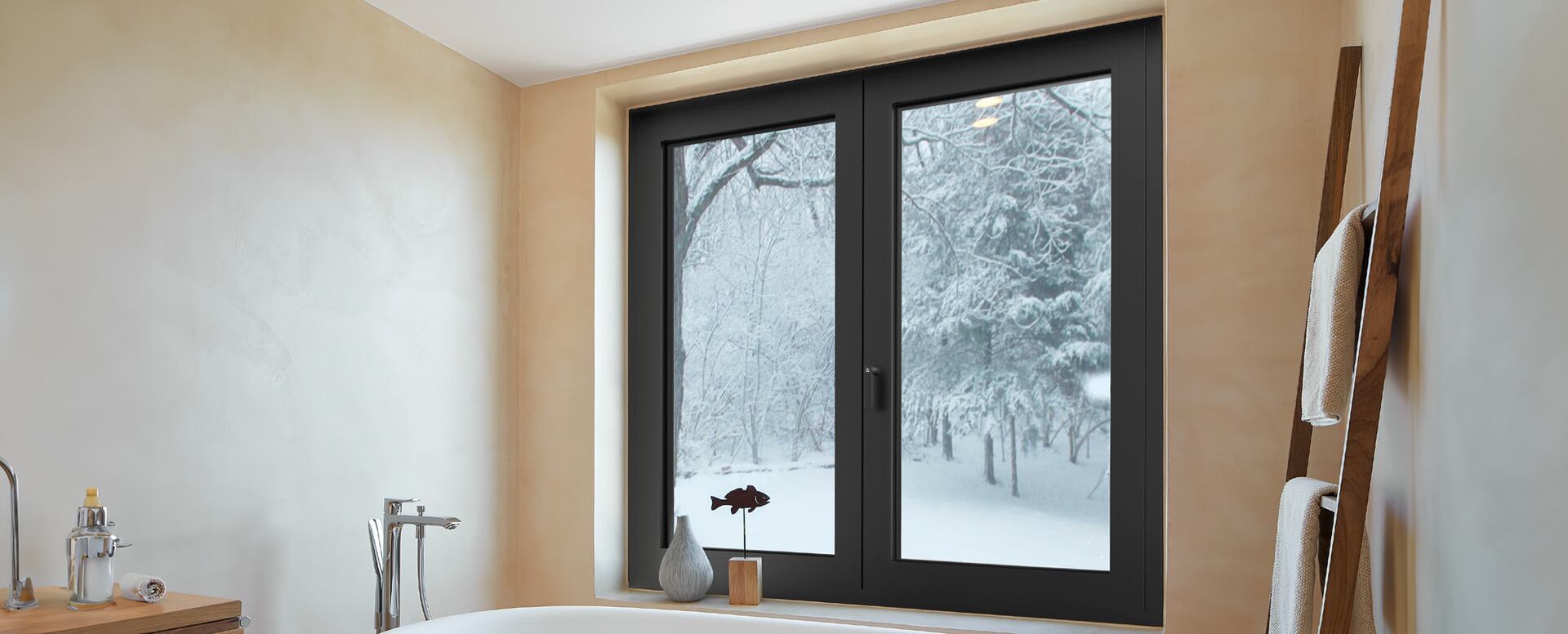

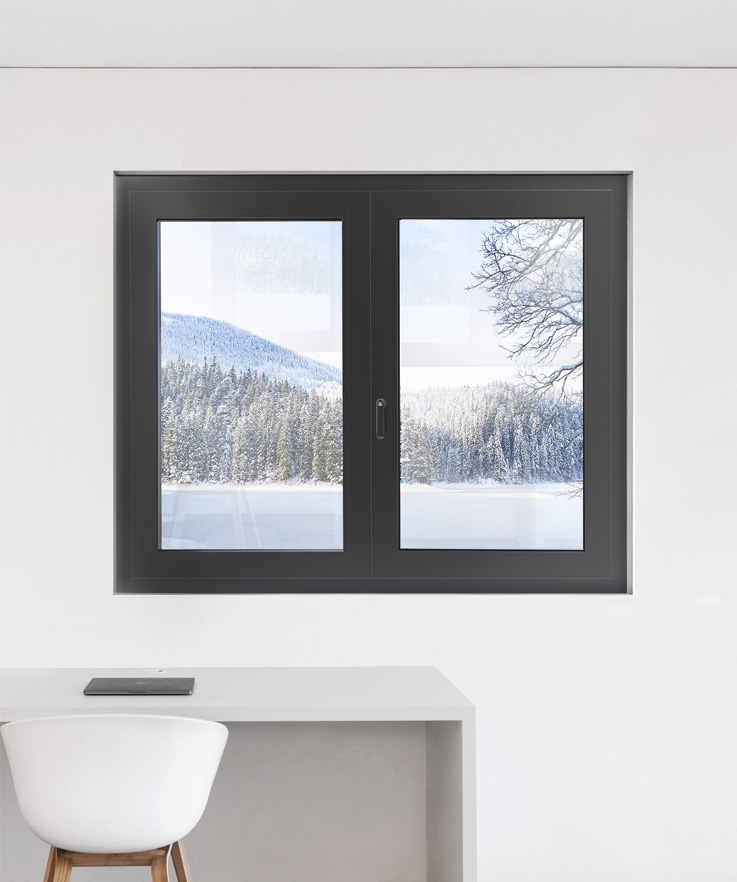

System gallery

Images prepared to show the system, technical details and integration in efficient projects.

Compare this system with what you need to improve

Before choosing a window, it helps to relate the system to the real use of the home: thermal insulation, outside noise, air leakage, watertightness, orientation and opening type.

Compare performance Thermal insulation Solutions by need

Would you like to assess COR 80 Industrial Passivhaus for your home?

Request a quote and we will help you assess whether this system fits your project’s energy-efficiency, insulation and comfort needs.
