A 84 Passivhaus 1.0

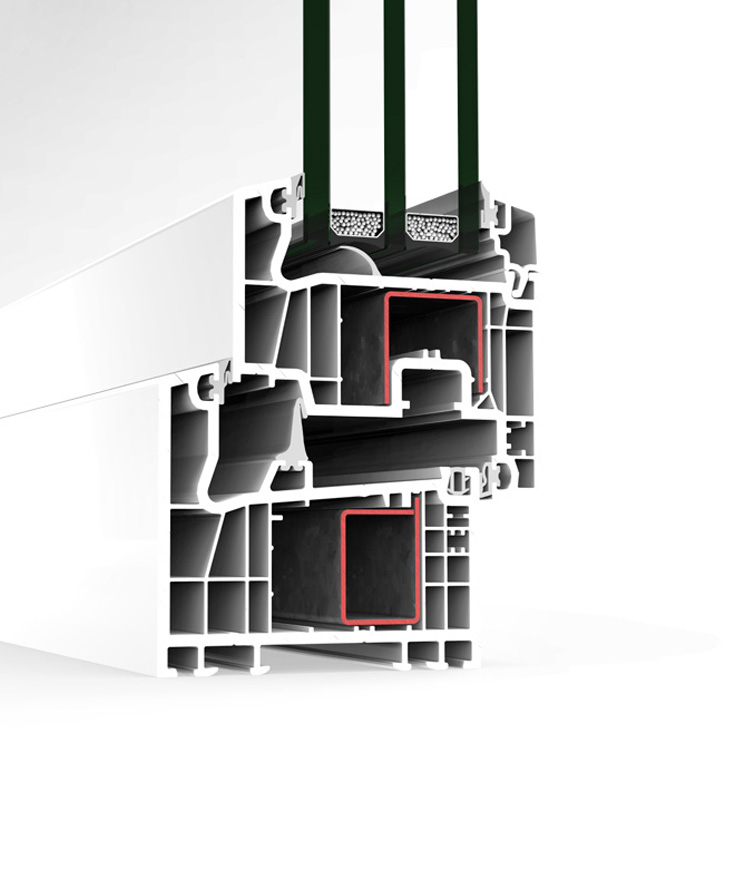

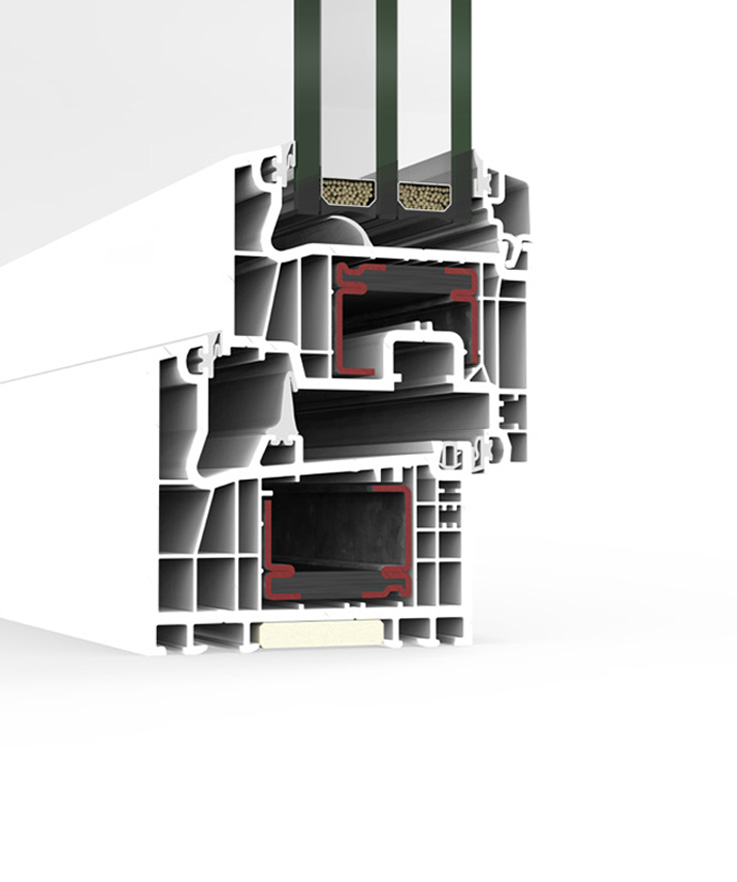

A 84 Passivhaus 1.0 PVC system certified for warm-temperate climates, with high thermal insulation, optional thermal-break internal reinforcement and Uw from 0.74 W/m²K.
A 84 Passivhaus 1.0 · Features | Cortizo aluminium and PVC windows for homes
A 84 Passivhaus 1.0 PVC system certified for warm-temperate climates, with high thermal insulation, optional thermal-break internal reinforcement and Uw from 0.74 W/m²K.
Thermal transmittanceUw ≥ 0,74 (W/m²K)
Acoustic insulationRw up to 46 dB
Air permeabilityClass 4
WatertightnessClass E1500
Wind resistanceClass C5
AEV reference test 1.23 x 1.48 m / 2 sashes
A 84 Passivhaus 1.0 · System data
Sections

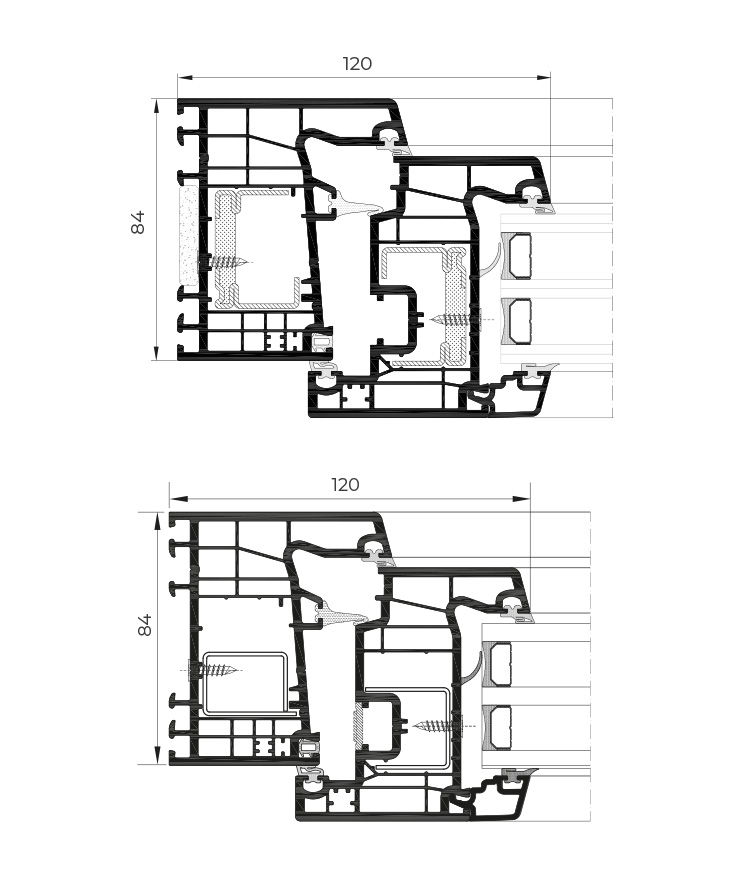

Sections Frame 84 mm · Sash 84 mm
Glazing Max. 54 mm · Min. 18 mm
Max. sash dimensions Window: Width (W) 450-1400 mm · Height (H) 450-2400 mm · Balcony door: Height (H) hasta 2500 mm
Max. sash weight 150 kg
Check maximum weight and dimensions according to typology
Options
Security hardware and concealed hardware
Straight sash. Straight or curved glazing bead.
Opening possibilities
Inward opening: side-hung, tilt-and-turn and bottom-hung. Depending on configuration, parallel sliding-tilt is possible.
Gallery A 84 Passivhaus 1.0
Compare this system with what you need to improve
Before choosing a window, it helps to relate the system to the real use of the home: thermal insulation, outside noise, air leakage, watertightness, orientation and opening type.
A 84 Passivhaus 1.0
A 84 Passivhaus 1.0 PVC system certified for warm-temperate climates, with high thermal insulation, optional thermal-break internal reinforcement and Uw from 0.74 W/m²K.
