2000 Perimeter Sliding
Perimeter sliding system with the option of straight, bevelled and curved sashes.
Versatile perimeter sliding system for residential solutions
2000 Perimeter Sliding provides a simple and flexible withfiguration for sliding windows and balwithy doors, with different frame, sash and pocket options. It is a practical solution for medium-sized openings that require sliding operation and reliable daily use.
Thermal transmittanceUw ≥ 2,9 (W/m²K)
Acoustic insulationRw up to 33 dB
Air permeabilityClass 3
WatertightnessClass 8A
Wind resistanceClass C5
Reference test AEV 1,20 x 1,20 m / 2 sashes
System data 2000 Perimeter Sliding
Sections
Sections 40 mm single-track frame · 40 / 45 / 60 / 70 mm double-track · 80 mm triple-track
Sections Straight and bevelled sash 26 mm · Curved sash 27.5 mm
Profile thickness Window 1.5 mm
Glazing Max. 17 mm · Min. 3 mm
Max. sash dimensions Width (W) 1600 mm · Height (H) 2600 mm
Max. sash weight 160 kg
Note Check maximum weight and dimensions according to typology
Opening possibilities
Single-track, double-track and triple-track sliding withfigurations. Pocket system. Single- and triple-track possibilities.
Gallery 2000 Perimeter Sliding

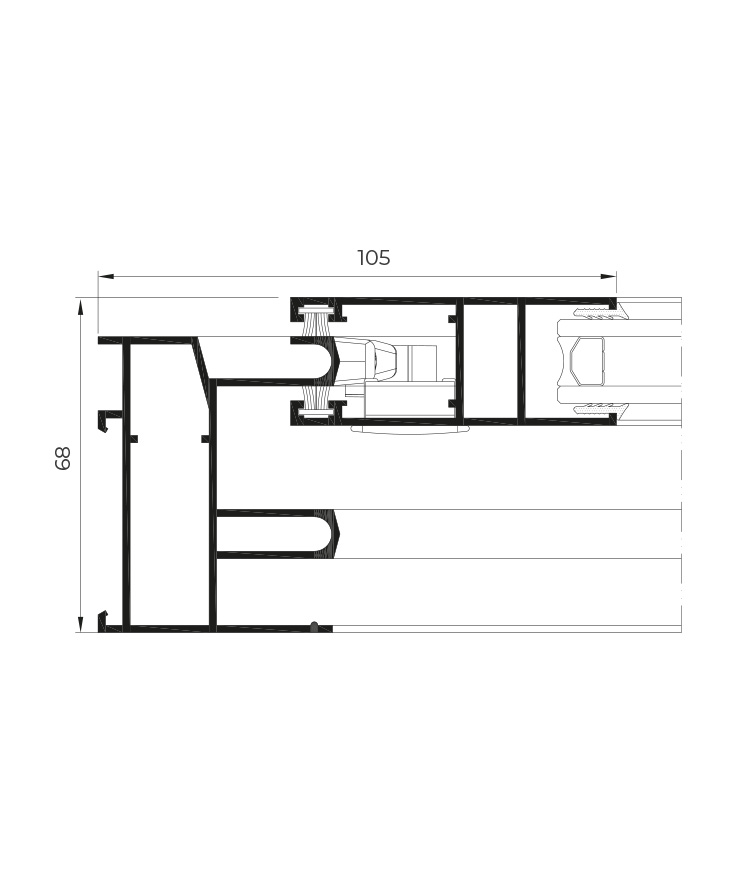

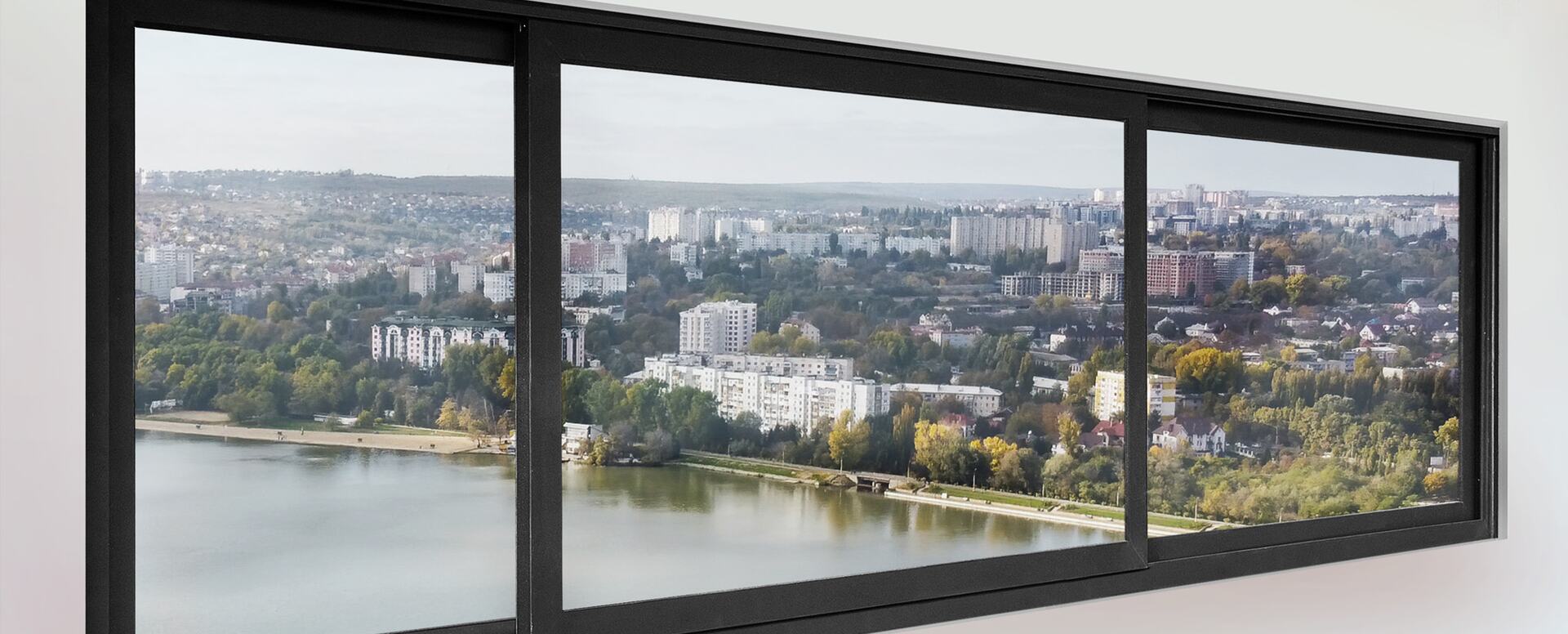

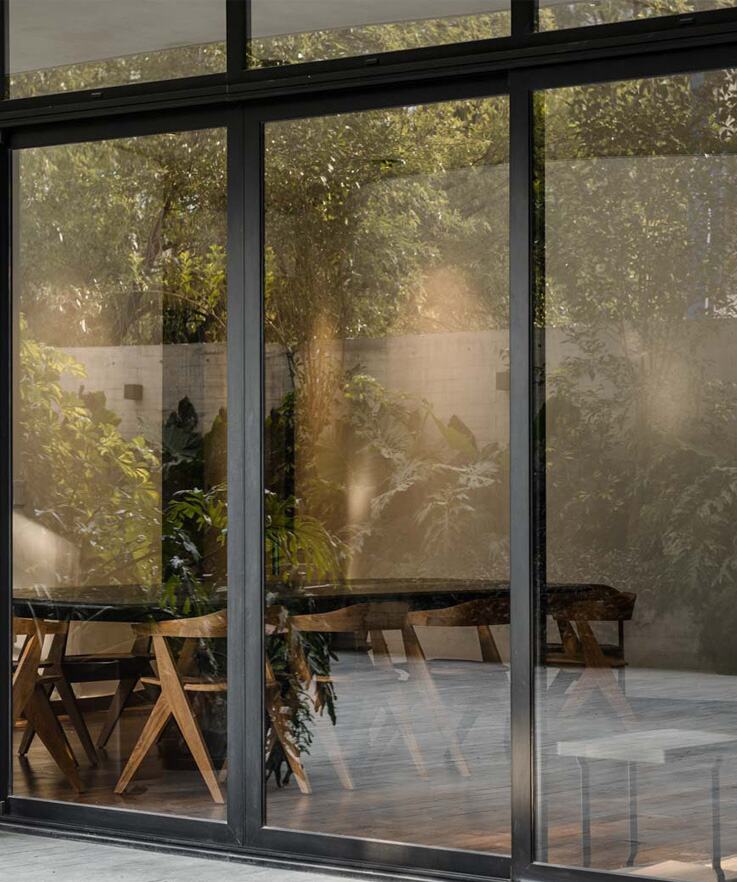

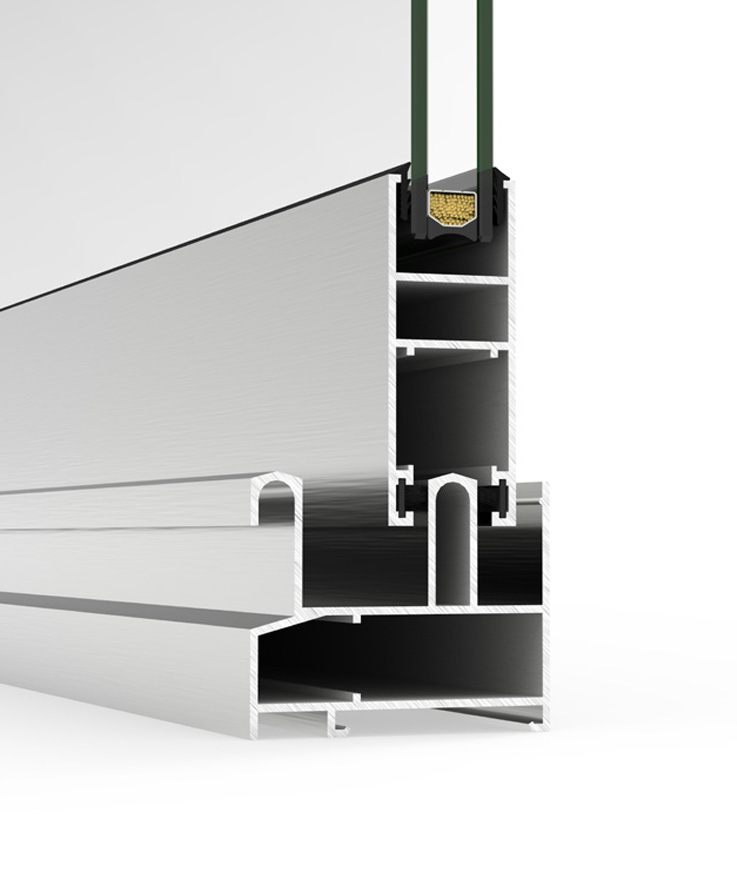

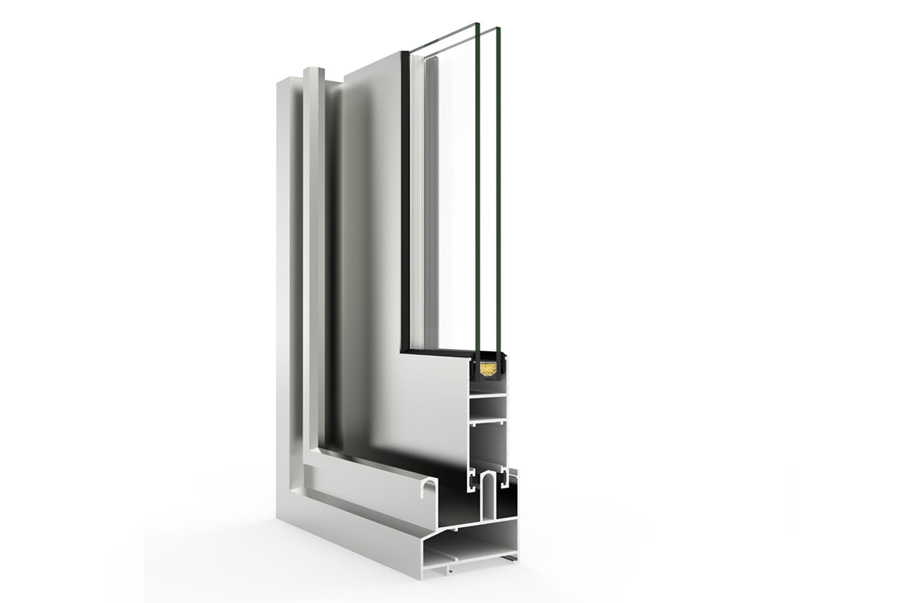

Images of the 2000 Perimeter Sliding system with architectural application, section details and opening possibilities.
