4700 Lift-and-Slide / Inline Sliding
4700 Lift & Slide / Inline Sliding is a versatile solution for closing large openings with a modern straight-line design, reduced central interlock and large glazed surfaces.
Versatile sliding system for large openings | Cortizo aluminium and PVC windows for homes
Available as lift-and-slide or inline sliding, it combines daylight, thermal and acoustic comfort and a withtemporary design that integrates easily into modern homes and projects with large openings.
Thermal transmittanceUw ≥ 1,0 (W/m²K)
Acoustic insulationRw up to 40 dB
Air permeabilityClass 3* / 4**
WatertightnessClass 7A
Wind resistanceClass C5* / C2**
* Inline AEV reference test 1.8 x 2.2 m / 2 sashes. ** Lift-and-slide AEV reference test 4.0 x 2.50 m / 2 sashes. Security test: 2.40 x 2.40 m / 2 sashes.
System data: 4700 Lift & Slide / Inline Sliding
Sections
Sections Frame 115 and 120 mm / 185 mm three-rail · Sash 50 mm
Polyamide strip length 20-25 mm
Profile thickness Max. 36 mm · Min. 26 mm
Glazing Max. 65 mm · Min. 22 mm
Max. sash dimensions Width (L) 2500 mm · Height (H) 3000 mm
Max. sash weight Línea 280 kg · Elevable 300 kg
Note Check maximum weight and dimensions according to typology
Opening possibilities
Single-track sliding (sash + fixed light), double-track, triple-track and four-track withfigurations. Pocket system.
Gallery 4700 Lift & Slide / Inline Sliding

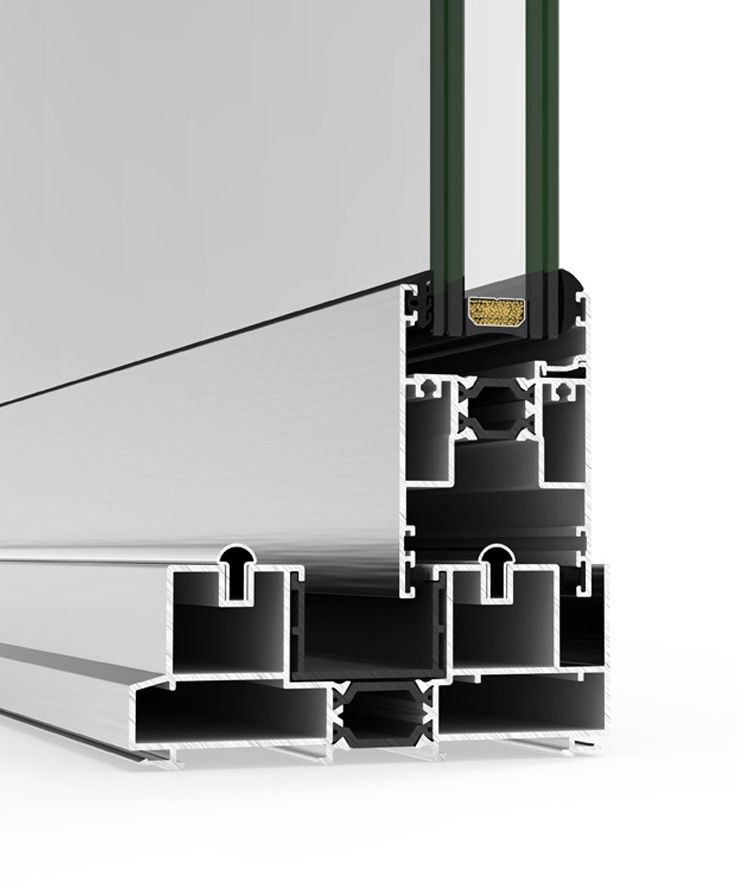

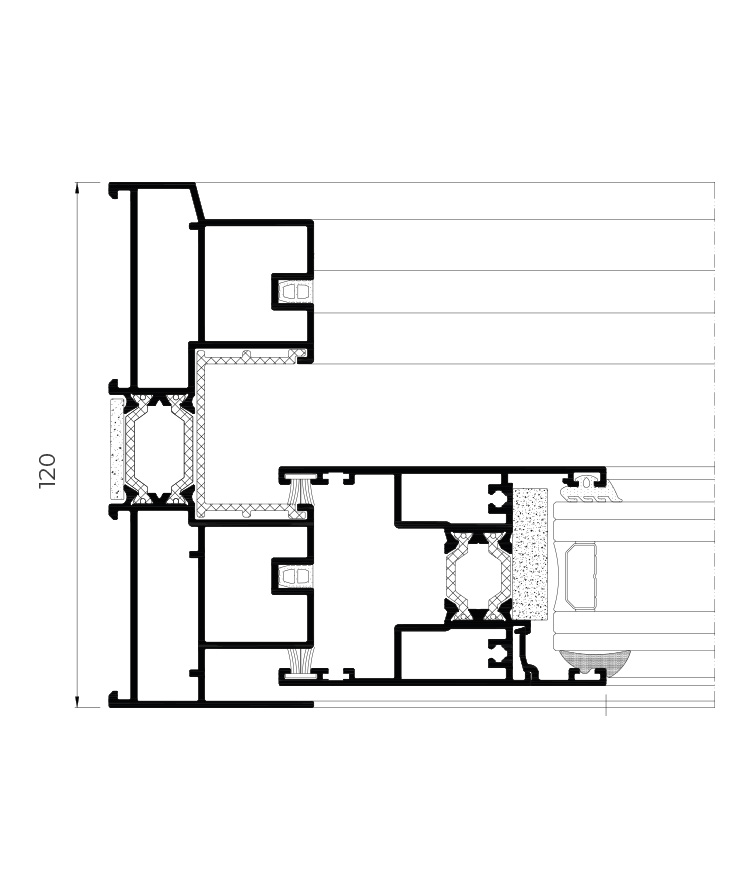

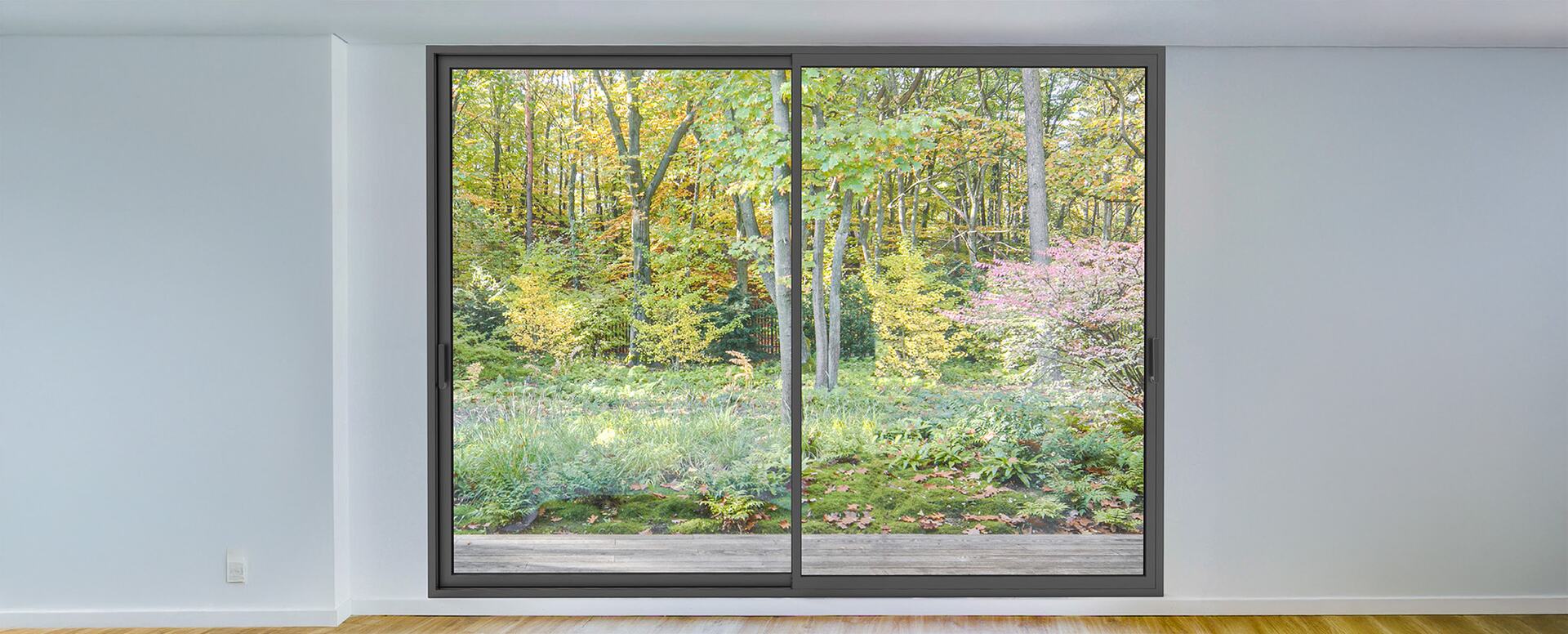

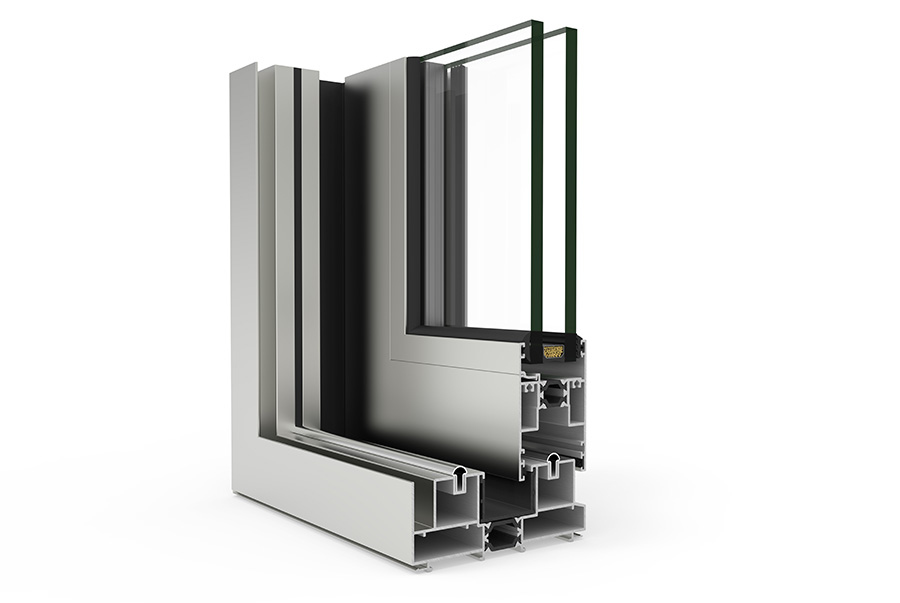

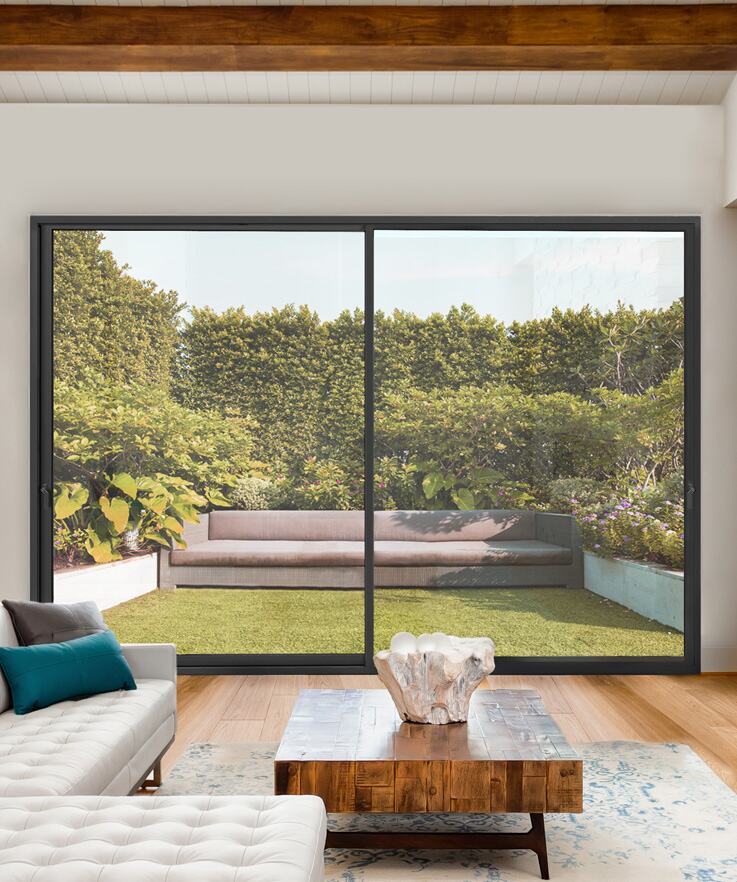

Images of the system with architectural application, technical sections and opening possibilities.
