6500 Sliding Plus / 6500 Sliding
Sliding window and door system for less demanding climates. The 6500 Plus version increases glazing capacity up to 30 mm and reduces the central interlock to 40 mm.
6500 Sliding Plus / 6500 Sliding
A versatile sliding family for projects that need a balance between straightforward construction, glazed surface and common opening configurations.
- Thermal transmittance
- 6500: Uw ≥ 2,9 (W/m²K) · 6500 Plus: Uw ≥ 2,9 (W/m²K)
- Acoustic insulation
- Rw up to 34 dB · 6500 Plus: Rw hasta 36 dB
- Air permeability
- Class 3
- Watertightness
- Class 7A
- Wind resistance
- Class C4
System data 6500 Sliding Plus / 6500 Sliding
Sections
- Sections
- 6500: Frame 83 mm · Sash 32 mm / 6500 Plus: Frame 104 mm · 158.1 mm triple-track · Sash 41.6 mm
- Profile thickness
- Window 1.5 mm · Door 1.5 mm
- Glazing
- 6500: Max. 17 mm · Min. 4 mm / 6500 Plus: Max. 30 mm · Min. 18 mm
- Max. sash dimensions
- Width (W) 1900 mm · Height (H) 2600 mm
- Max. sash weight
- 6500: 140 kg · 6500 Plus: 240 kg
- Note
- Check maximum weight and dimensions according to typology
Opening possibilities

Gallery 6500 Sliding Plus / 6500 Sliding

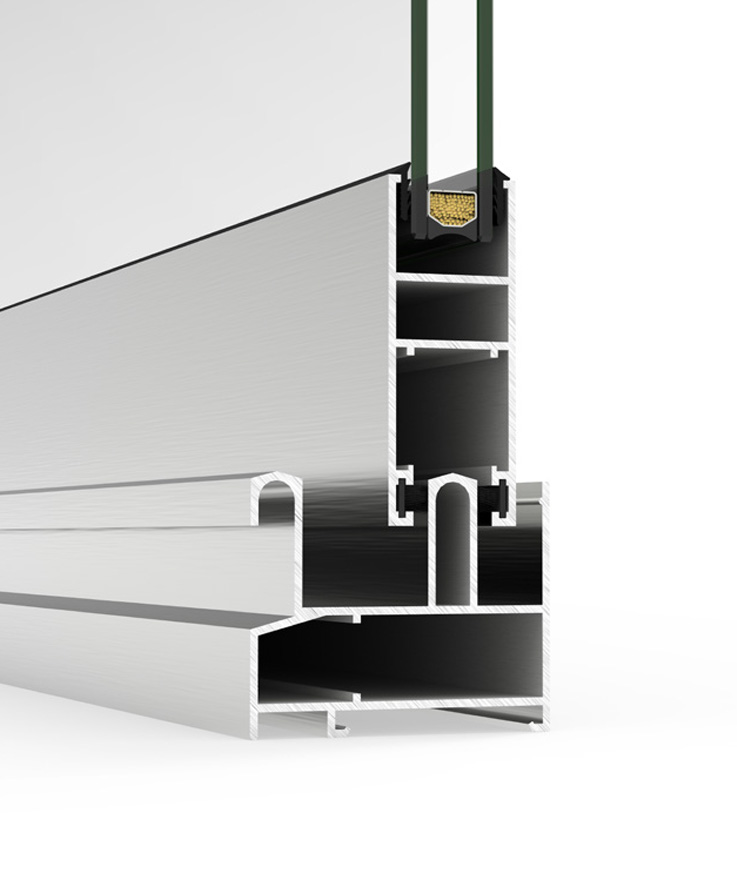

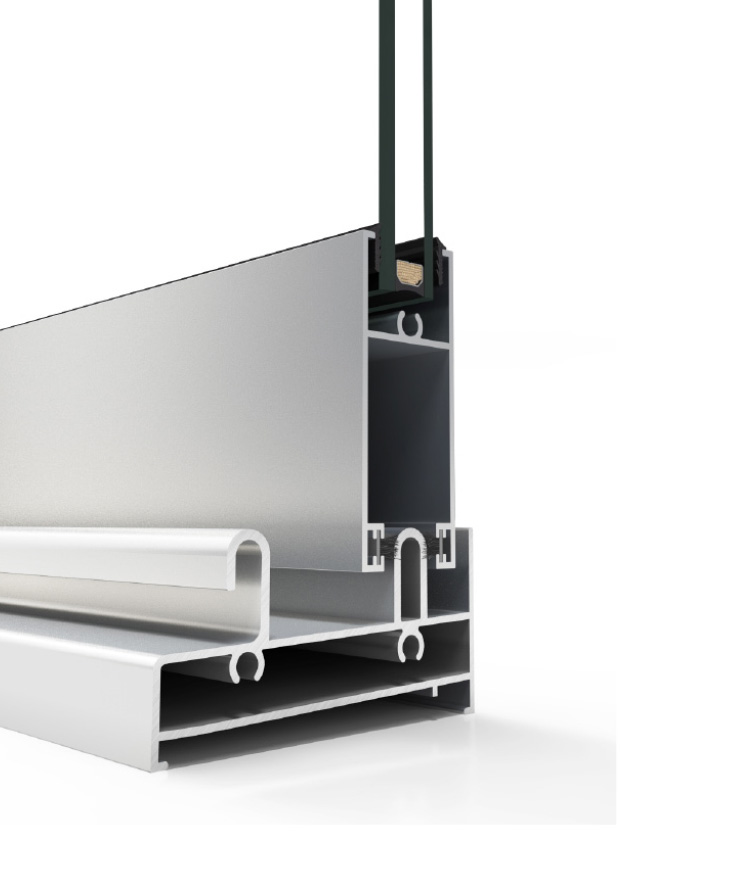

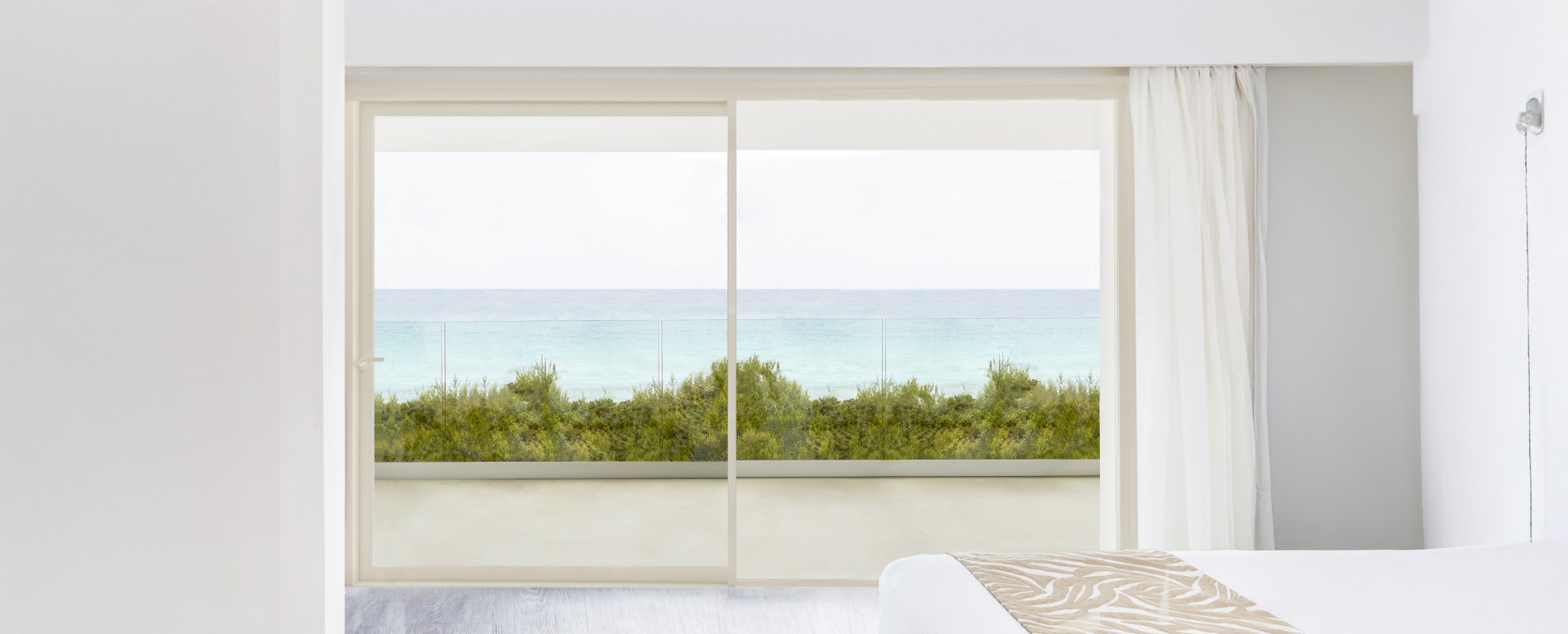

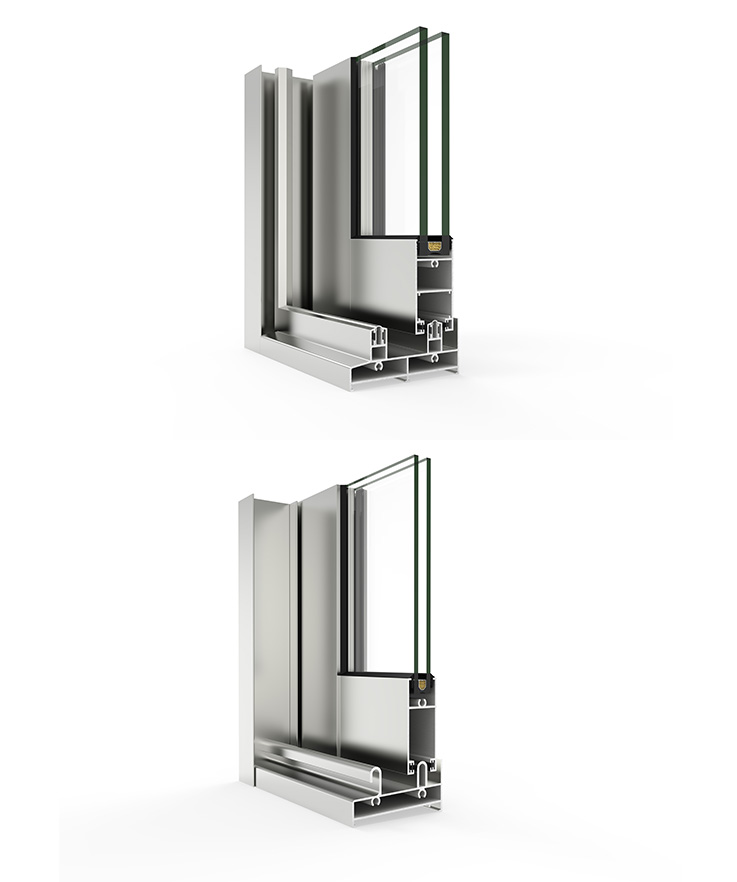

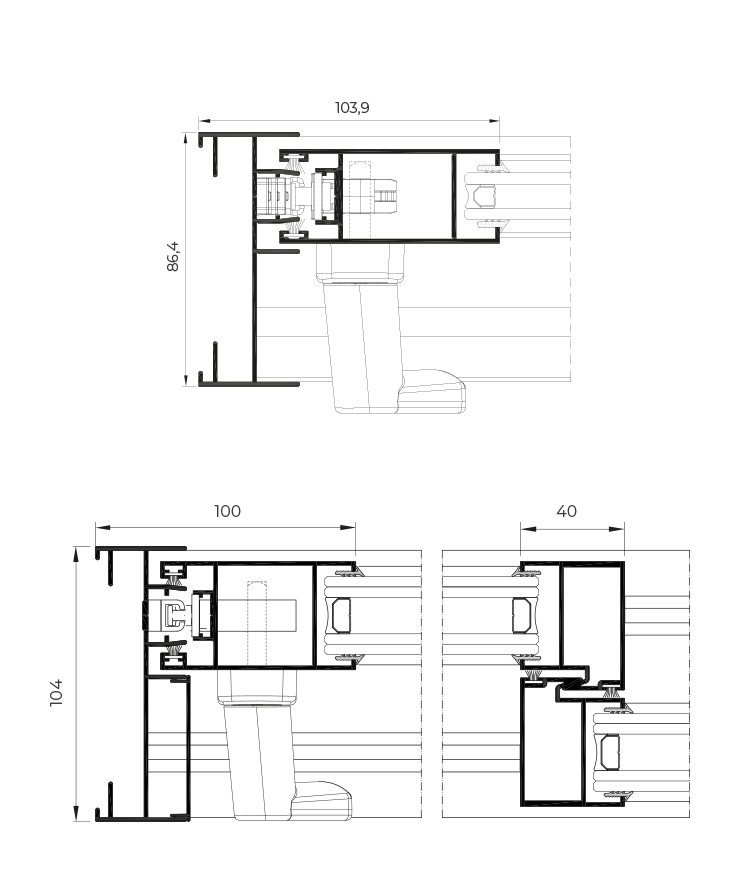

Images of the 6500 Sliding Plus / 6500 Sliding system with architectural application, section details and opening possibilities.




Compare this system with what you need to improve
Before choosing a window, it helps to relate the system to the real use of the home: thermal insulation, outside noise, air leakage, watertightness, orientation and opening type.
Connect this system with your project
Review selection criteria, related solutions and real projects before comparing performance and requesting a quote.
Would you like to study 6500 Sliding Plus / 6500 Sliding for your project?
Request a quote and we will help you define the most suitable sliding solution for your home.
Request a quote
