Mallorquina

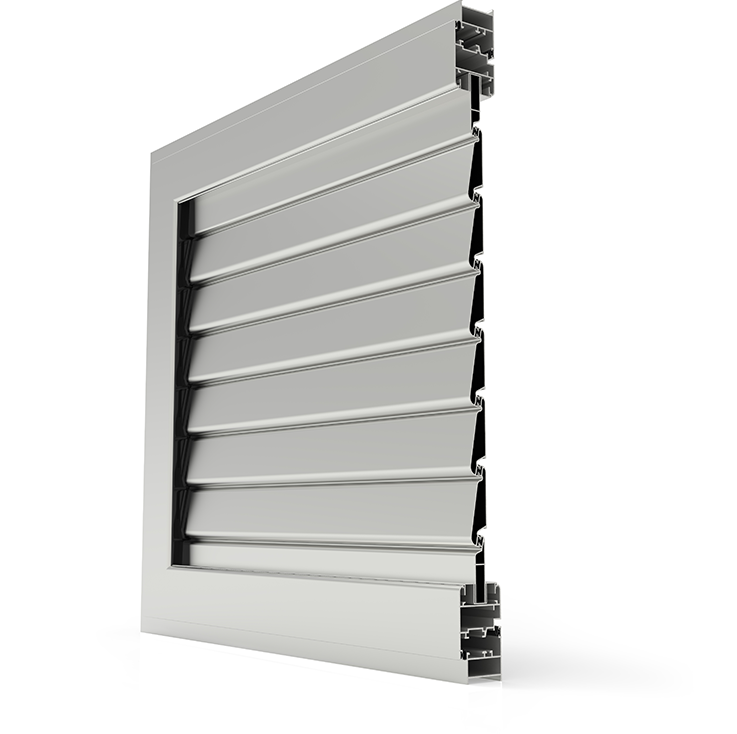

Hinged shutter system with fixed or adjustable louvers to protect homes from the sun, improve ventilation and maintain a Mediterranean or contemporary appearance.
Cortizo aluminium and PVC windows for homes
Hinged shutter system with fixed or adjustable louvers to protect homes from the sun, improve ventilation and maintain a Mediterranean or contemporary appearance.
Solar protectionMallorquina
Features△R 0,08
Wind resistanceClase 5
System detailsOpening options
Technical information
Features
Thermal resistance of the shutter and air cavity△R = 0,08 (m²K/W)
Wind resistanceClass 5
Reference testAEV reference test 1.50 x 1.50 m / 2 leaves
Thermal transmittance
Uw (W/m²K) 0,8Uws (W/m²K) 0,75
Uw (W/m²K) 1,0Uws (W/m²K) 0,93
Uw (W/m²K) 1,2Uws (W/m²K) 1,09
Uw (W/m²K) 1,4Uws (W/m²K) 1,26
Uw (W/m²K) 1,6Uws (W/m²K) 1,42
Uw (W/m²K) 1,8Uws (W/m²K) 1,57
Uw (W/m²K) 2,0Uws (W/m²K) 1,72
Uw (W/m²K) 2,2Uws (W/m²K) 1,87
Uw (W/m²K) 2,4Uws (W/m²K) 2,01
Uw (W/m²K) 2,6Uws (W/m²K) 2,15
Uw (W/m²K) 2,8Uws (W/m²K) 2,29
Uw (W/m²K) 3,0Uws (W/m²K) 2,42
Uw (W/m²K) 3,2Uws (W/m²K) 2,55
Uw window transmittance / Uws window-shutter assembly transmittance

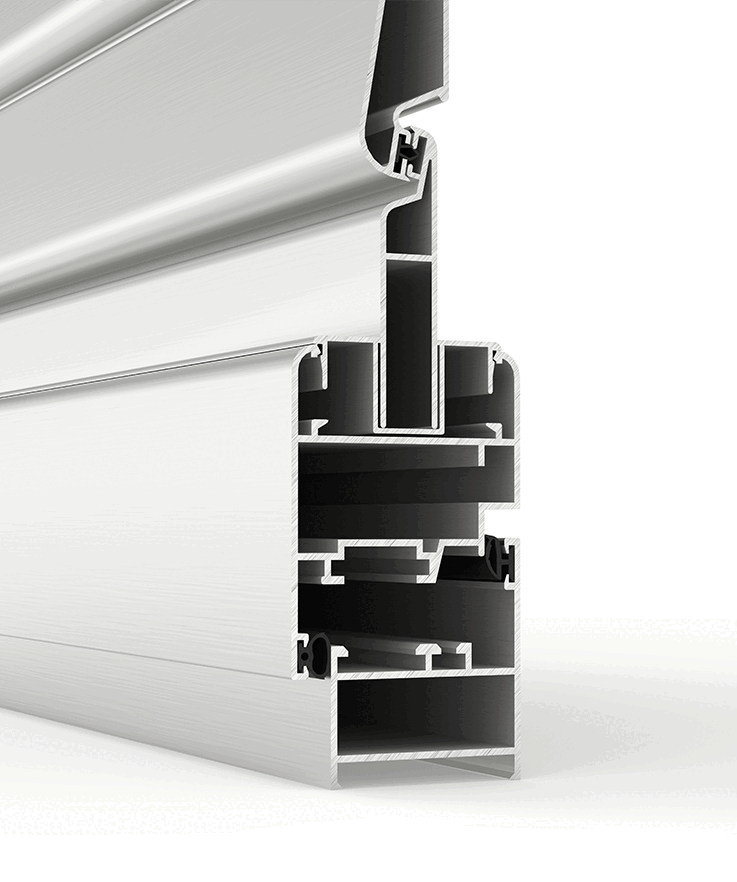

Sections
Frame40 mm
Leaf48 mm
Profile thicknessWindow: 1,3 mmDoor: 1,5 mm
Max. leaf dimensionsWidth 1500 mm · Height 2400 mm
Max. leaf weight75 kg
Opening options
1, 2, 3 and 4-leaf casement

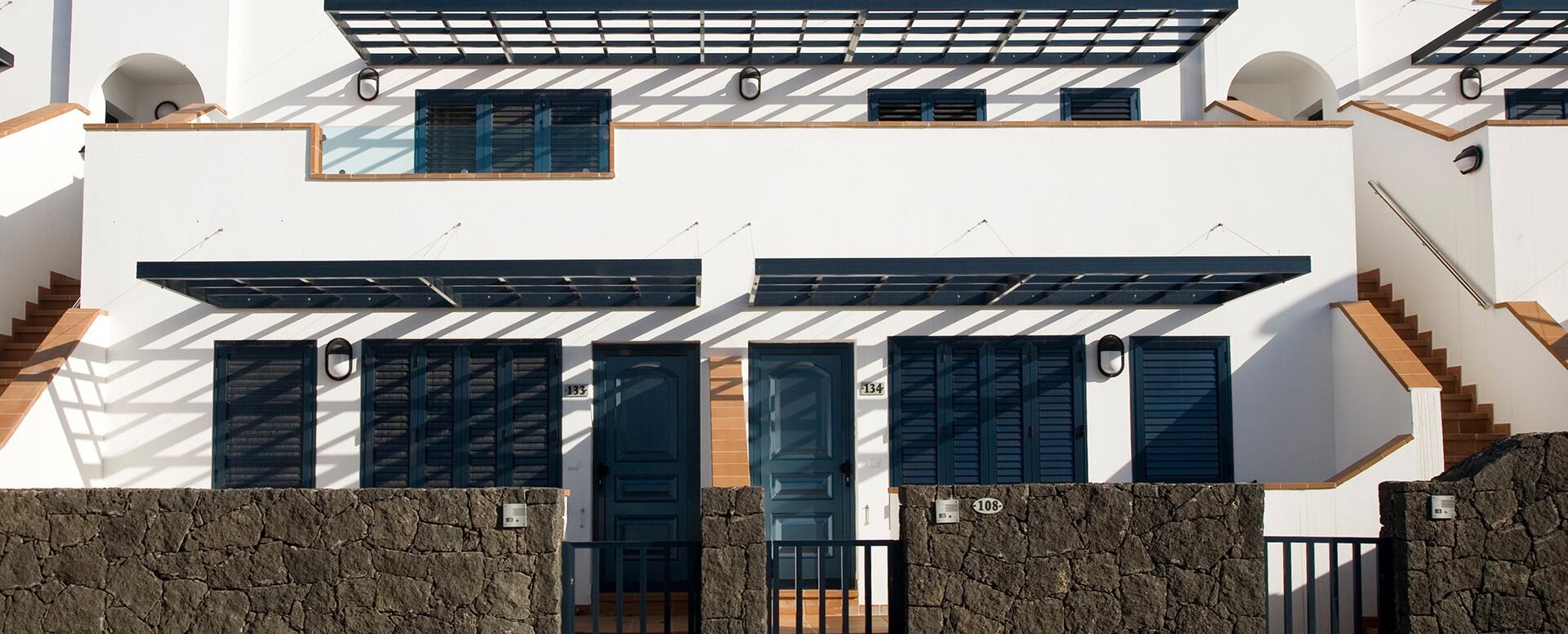

System gallery
Connect this system with your project
Review selection criteria, related solutions and real projects before comparing performance and requesting a quote.
Mallorquina
CORTIZO Mallorquina combines aluminium shutters with fixed or adjustable louvers, providing solar protection, privacy and natural ventilation for windows, balconies and homes.
